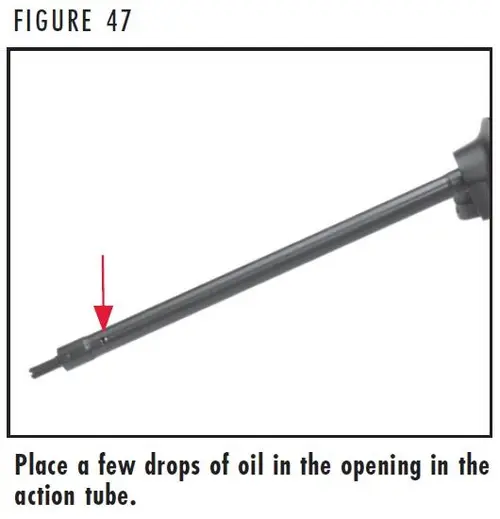

Lubricating the Action Tube and Spring
Maintenance of Oil Finish Stocks
Models with Special Finishes
Service or Repair
State-By-State Warnings

GENERAL DESCRIPTION AND OPERATION

The Browning A5 is a recoil-operated autoloading shotgun capable of quickly firing up to five shells (with the three-shot adaptor removed, using 2¾" loads), one shell at a time, with each successive pull of the trigger. Upon firing, recoil acts upon the slide assembly and compresses the recoil spring. When the energy from the recoil spring is released, the energy causes the slide to travel rearward, unlocking the bolt from the barrel and cycling the action. As the slide assembly moves rearward, it cocks the hammer and ejects the fired shell. After full rearward travel, the slide assembly returns forward, picks up a new shell from the magazine and chambers it. After the last shell has been fired, the slide assembly locks to the rear for faster reloading.

NOMENCLATURE

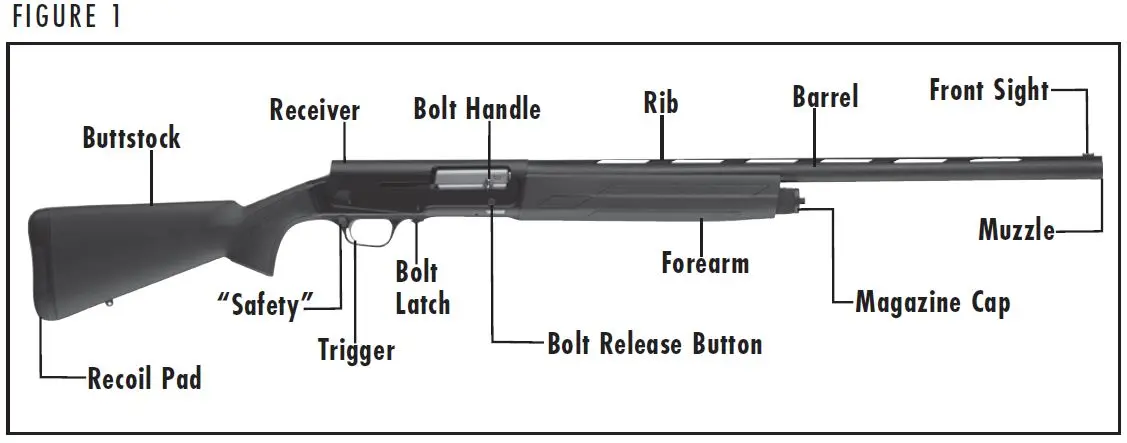

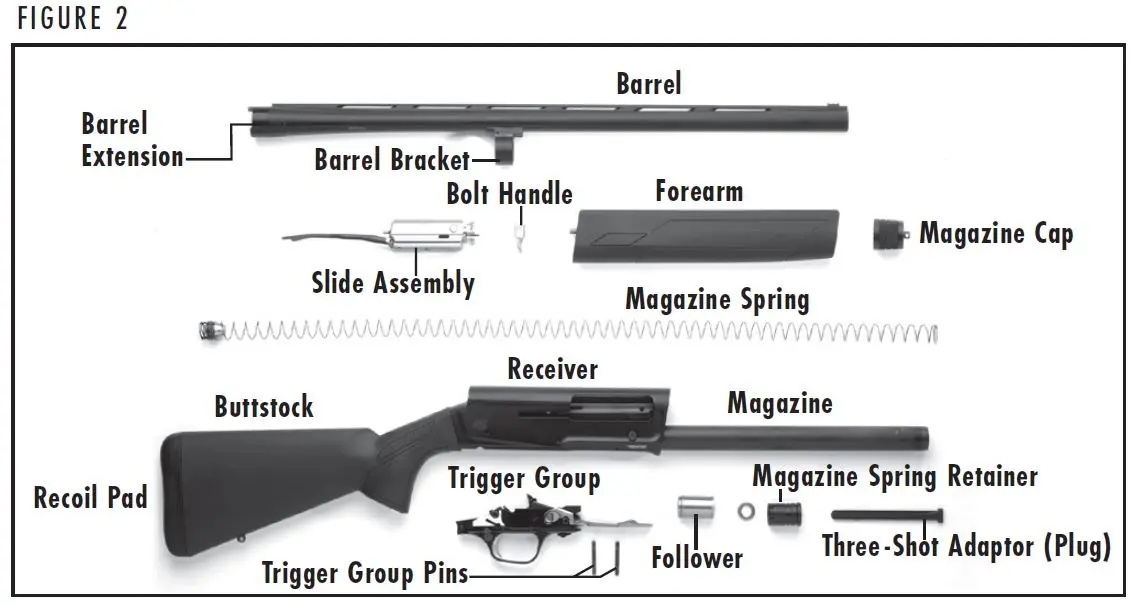

In conventional firearm terminology the position and movement of firearm parts are described as they occur with the firearm horizontal and in the normal firing position: i.e., the muzzle is forward or in front; the buttstock is rearward or to the rear; the trigger is downward or underneath; the rib is upward or on top. For general parts nomenclature, refer to Figure 1. For specific parts names related to disassembly, refer to Figure 2.

SERIAL NUMBER

The serial number of your A5 shotgun is found on the right side of the receiver, below the bolt release button. Record this number in the space provided at the front of this owner's manual for future reference.

INITIAL CLEANING

Various exposed metal parts of your new firearm have been coated at the factory with a rust preventative compound. Before assembling your shotgun, clean the anti-rust compound from the inside of the barrel, receiver and the action/chamber areas. A high-quality lightweight gun oil is ideal for removing this compound, and for giving your new firearm its first lubrication. Place a drop of lightweight gun oil on both sides of the inside of the receiver on the rails on which the slide assembly moves (Figure 3). Clean the barrel using a cleaning rod and patch as explained under “Cleaning the Barrel”.

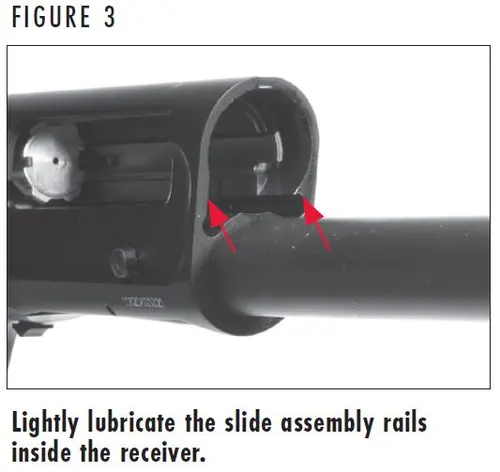

Lightly lubricate the slide assembly rails inside the receiver.

OPERATION OF THE “SAFETY”.

The “safety” is designed to prevent the trigger from being pulled when in the on safe position. The “safety” is located at the rear of the trigger guard. In the off safe position, a red warning band is visible on the safety button on the left side of the trigger guard.

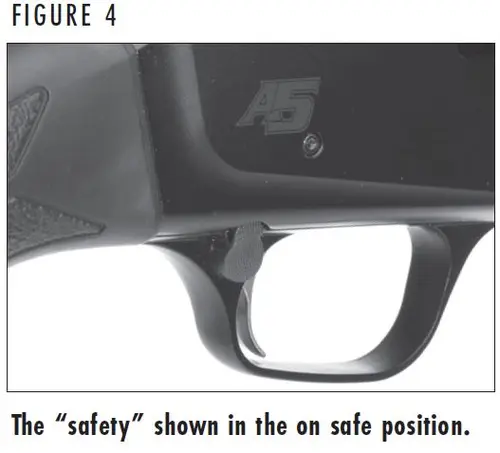

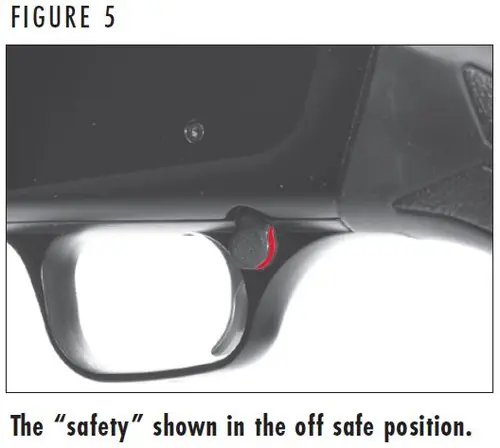

To place the firearm on safe, press the “safety” button to the right (Figure 4).

To move the “safety” to the off safe or fire position, press the safety button to the left. This exposes the red warning band on the “safety” button (Figure 5).

The “safety” can be reversed from right- to left-handed by a qualified gunsmith. When installed, the left-handed “safety” will have the “safety” button’s red warning band on the right side of the trigger guard.

BOLT LATCH

The A5 shotgun features a bolt latch mounted just forward of the trigger guard, on the bottom of the shotgun. The bolt latch performs two functions:

• Allows the slide assembly to be locked in the open position when the magazine is unloaded.

• Releases a shell from the magazine to be loaded into the chamber.

In order to lock the slide assembly in the open position or release a shell for the magazine to be chambered, the bolt latch must be slid rearward before pulling the bolt handle completely rearward.

ASSEMBLY

The A5 shotgun is delivered in the box with the barrel removed from the receiver. Assemble the A5 according to the following procedures.

1. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explained above.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

2. Unscrew the magazine cap by turning it counterclockwise.

3. Remove the forearm from the magazine tube.

DO NOT SQUEEZE HARD ON THE OPEN REAR END OF A WOOD FOREARM. TOO MUCH PRESSURE COULD CAUSE THE WOOD TO SPLIT.

4. Remove the forearm retainer by sliding it forward and out of the forearm (Figure 6). Save the forearm retainer as it helps prevent damage to the receiver and forearm when the barrel is not installed on the shotgun.

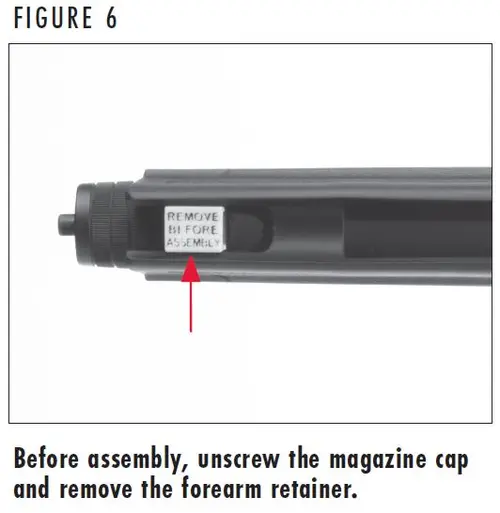

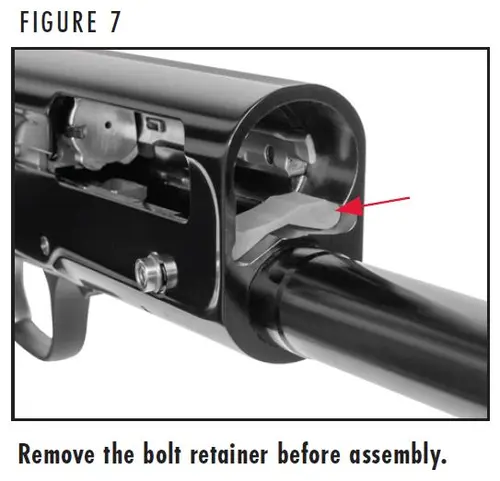

Before assembly, unscrew the magazine cap and remove the forearm retainer.

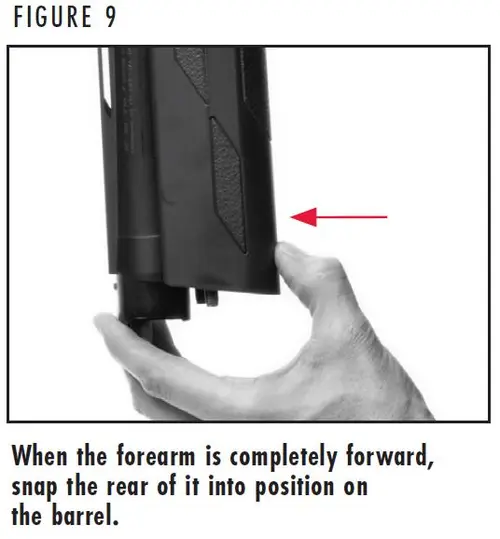

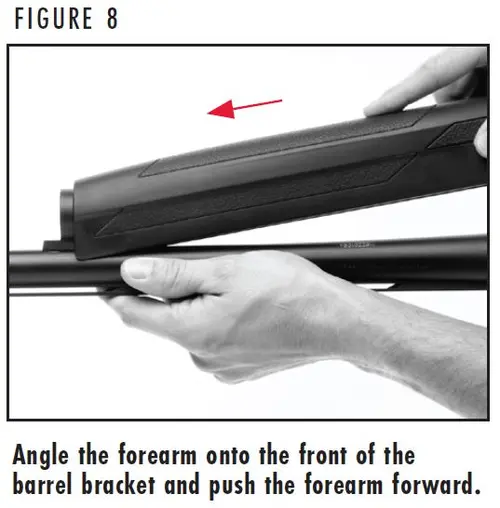

5. Angle the front of the forearm over the barrel bracket slightly, then push the forearm completely onto the barrel bracket (Figure 7). When the forearm is completely on the  barrel bracket, press the rear of the forearm into place on the barrel (Figure 8).

DO NOT SQUEEZE THE OPEN REAR END OF A WOOD FOREARM. TOO MUCH PRESSURE COULD CAUSE THE WOOD TO SPLIT.

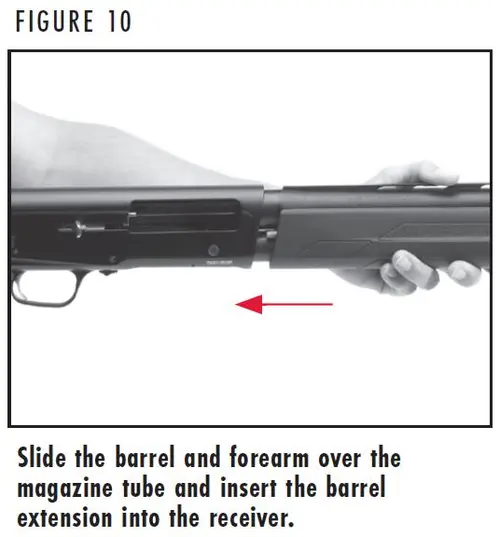

6. Slide the barrel and forearm over the magazine tube. Align the barrel extension and forearm studs with the recesses in the front of the receiver. The barrel extension should slip solidly into the receiver (Figure 9).

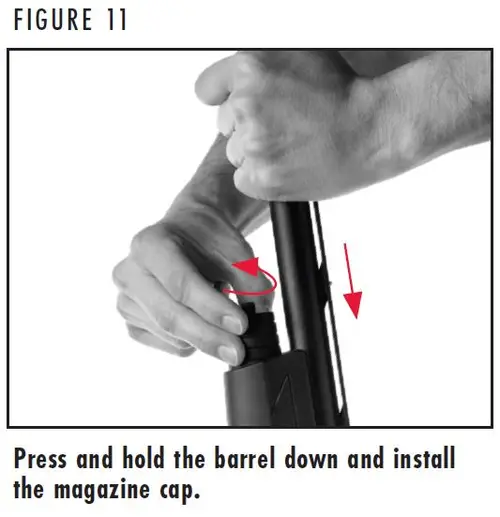

7. Continue to apply pressure on the barrel, pushing it into the receiver, while installing the magazine cap by turning it clockwise (Figure 10).

DISASSEMBLY

1. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explained above.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

2. Unscrew the magazine cap by turning it counterclockwise.

3. Remove the forearm and barrel together by pulling them forward and off the magazine tube.

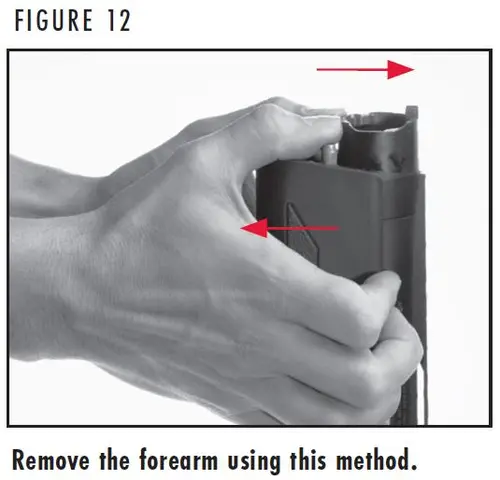

4. Remove the forearm from the barrel by carefully pulling the rear of the forearm away from the barrel slightly as shown in Figure 11, then sliding the forearm to the rear and  off the barrel bracket.

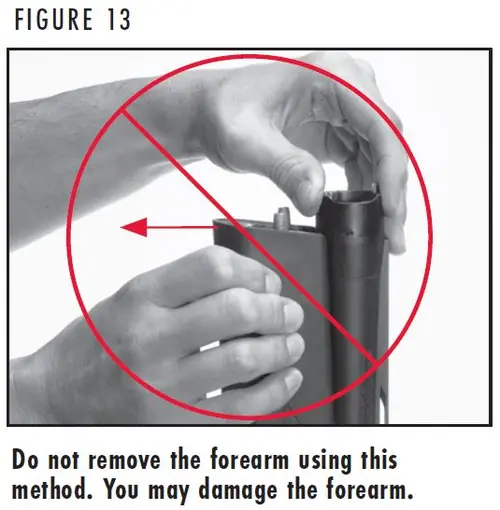

WHEN REMOVING THE FOREARM DO NOT PULL THE REAR OF THE FOREARM MORE THAN 1" FROM THE BARREL, OR SLIDE THE FOREARM OFF THE REAR OF THE BARREL BEFORE PULLING IT AWAY FROM THE BARREL, YOU MAY DAMAGE THE FOREARM. WHEN REMOVING, DO NOT REMOVE THE FOREARM AS SHOWN IN FIGURE 12. DO NOT SQUEEZE THE OPEN REAR END OF A WOOD FOREARM. TOO MUCH PRESSURE COULD CAUSE THE WOOD TO SPLIT.

For cleaning, follow the guidelines in “Cleaning and Maintenance”. For storage, install the forearm retainer into the front of the forearm. Slide the forearm over the magazine tube and install the magazine cap. You will then have two compact units: The barrel, and the action with stock and forearm.

AFTER THE BARREL HAS BEEN REMOVED, LEAVE THE SLIDE ASSEMBLY IN THE REARWARD POSITION. DO NOT PRESS THE BOLT RELEASE BUTTON. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER, CAUSING DAMAGE.

AMMUNITION

USING INCORRECT AMMUNITION MAY CAUSE YOUR FIREARM TO MALFUNCTION AND COULD SEVERELY DAMAGE YOUR FIREARM. ALWAYS TAKE CARE TO USE THE CORRECT AMMUNITION IN YOUR FIREARM.

The most certain way to bulge or rupture a shotgun barrel is to load  a smaller gauge shell into a larger gauge chamber. The smaller gauge shell will not fall completely through the barrel; its rim is caught by the front of a larger gauge chamber or at the larger gauge’s choke. Your shotgun will misfire (with the chamber appearing to be empty). It is then possible to load the correct gauge shell behind the smaller gauge shell. If the shotgun is then fired, the result will be a so-called “12-16, 12-20, 20-28 or 28-.410 burst” which can cause extensive damage to your shotgun and possible serious injury to you and others.

We can assume no responsibility for incidents which occur through the use of shells of nonstandard dimension or those developing pressures in excess of SAAMI (Sporting Arms and Ammunition Manufacturers’ Institute) established standards.

A5 12 gauge, 3" chamber models will shoot all 1 oz. and heavier factory lead and steel 12 gauge, 2-3/4" and 3" field loads. A5 12 gauge, 3-1/2" chamber models will shoot all 1-1/8 oz. and heavier factory lead and steel 12 gauge, 2-3/4", 3" and 3-1/2" field loads.

A5 16 gauge models will shoot all 15/16 oz. and heavier factory lead and steel 16 gauge, 2-3/4" field loads.

However, due to variations in the manufacture of ammunition, and to help ensure reliability, always use ammunition that is powerful enough to cycle the action completely.

MAGAZINE CAPACITY

With the magazine three-shot adaptor (plug) removed, A5 3" shotguns will hold four 2-3/4" or three 3" shells in the magazine. A5 3-1/2" shotguns will hold four 2-3/4" shells, or three 3" or 3-1/2" shells in the magazine.

THREE-SHOT ADAPTOR (PLUG)

The A5 is delivered with the magazine three-shot adaptor (plug) installed in the magazine, limiting magazine capacity to two shells in compliance with federal migratory bird regulations. If you do not wish to be limited to three shots, when it is not required by law, you can remove (or reinstall) the three-shot adaptor (plug) as follows.

Note: The accompanying photos show the barrel removed for  clarity purposes. Removing the barrel is not necessary to remove the three-shot adaptor (plug).

REMOVING THE THREE-SHOT ADAPTOR (PLUG)

1. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explained. Ensure the firearm is completely unloaded and the “safety” is in the on safe position.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

2. Remove the magazine cap as explained previously.

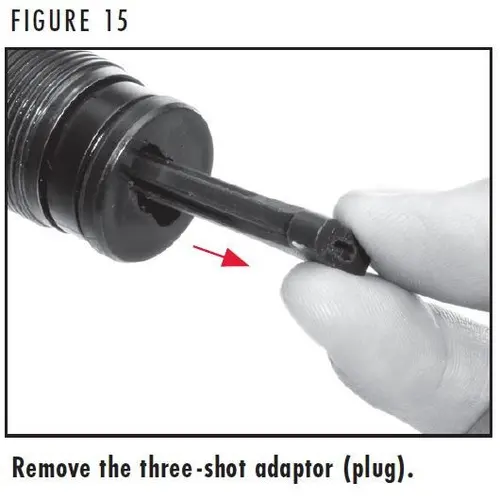

3. The A5 features the TurnKey Magazine Plug which is quickly and easily removed by inserting a key or standard screwdriver into the slot in the end of the magazine tube. To remove the three-shot adaptor (plug), press inward and turn the key or flat-blade screwdriver a quarter-turn to align the three-shot adaptor (plug) with the slot in the end of the magazine (Figure 13). This unlocks the three-shot adaptor (plug), allowing it to be removed.

4. If the barrel and forearm are on the shotgun, hold them to prevent them from falling out of the receiver while pointing the magazine tube down to allow the three-shot adaptor (plug) to fall out of the end of the magazine tube. Grasp and remove it (Figure 14).

5. Reinstall the magazine cap as explained previously.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

INSTALLING THE THREE-SHOT ADAPTOR (PLUG)

If you need to install the magazine three-shot adaptor (plug) to limit the magazine to two shells, again perform the following operation:

1. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explain. Ensure the firearm is completely unloaded and the “safety” is in the on safe position.

2. Remove the magazine cap as explained previously.

3. Insert the magazine three-shot adaptor (plug) into the slot in the end of the magazine tube.

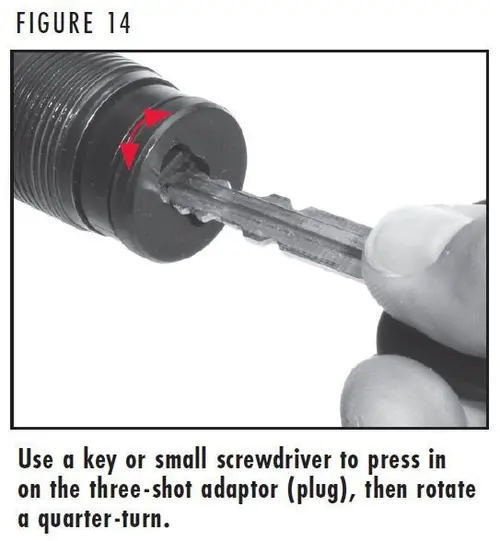

4. Insert a key or flat-blade screwdriver into the slot in the end of the magazine tube. Press inward and turn the three-shot adaptor (plug) a quarter-turn to secure in the magazine (Figure 15).

5. Reinstall the magazine cap as explained previously.

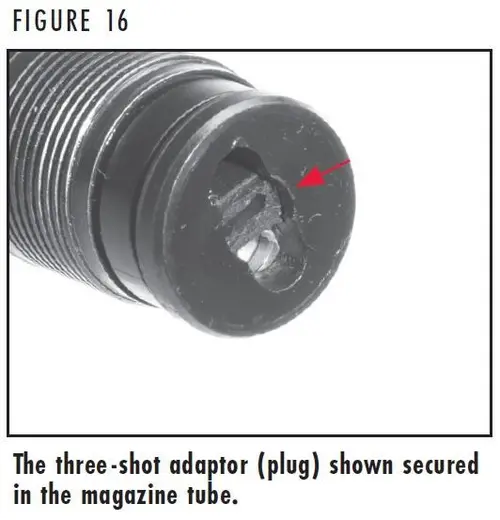

The three-shot adaptor (plug) shown secured in the magazine tube.

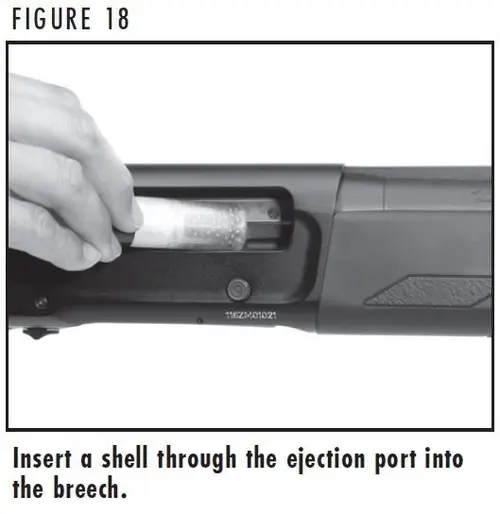

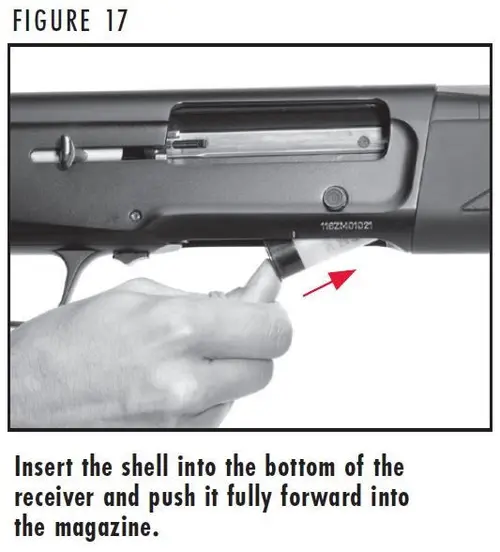

5. With a shell in the chamber, you may load the magazine to full capacity. To load the magazine, insert a shell of proper gauge and length through the loading port at the bottom of the receiver up into the magazine, using your thumb to position it fully forward in the magazine tube. Make sure the rim of the shell engages the shell stop and is held fully inside the magazine tube. It will make an audible click when fully inserted.

FIRING

1. Place the “safety” in the on safe position.

2.  Load a shell into the chamber as explained previously.

3. With a shell in the chamber, you need only move the “safety” to the off safe position to fire the shotgun.

4. When ready to fire, move the “safety” into the off safe position, take aim and squeeze the trigger.

After a shell is fired, energy from the fired shell operates the slide assembly, ejects the fired shell, picks up a loaded shell from the magazine and automatically chambers it. You may continue to fire the shotgun until the magazine is empty by pulling the trigger to fire each shell. After the last shell is fired, the breech of the shotgun remains open, with the slide assembly locked to the rear. This allows convenient and fast reloading.

If you are done shooting, leave the slide assembly locked to the rear, with the breech in the open position so that you may visually inspect the chamber, bore, carrier and magazine to be sure they contain no shells.

UNLOADING

Speed Unloading

1. Place the “safety” in the on safe position.

2. Pull rearward on the bolt handle to eject the shell from the chamber. Allow the bolt to close on the empty chamber.

3. Turn the shotgun over so the trigger guard is facing up, then push the carrier down with your finger as far as it will go.

4. Shells are retained in the magazine by the shell stop, which catches the rim of the shell base. Locate the shell stop inside the receiver (Figure 18) on the right side of the loading port (visually to the left side when looking down into the loading port).

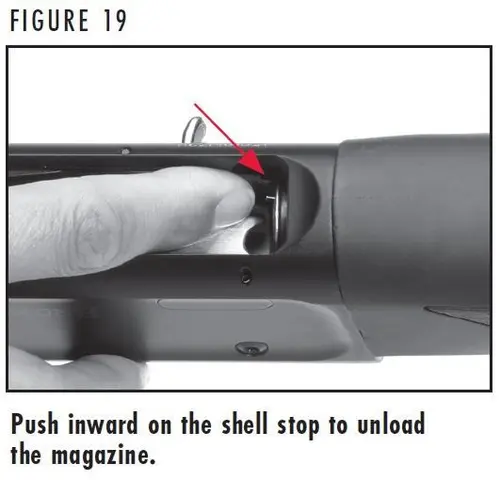

5. Push in on the shell stop to release a shell from the magazine. When the shell stop is pressed, a shell is forced out of the magazine under spring pressure. Catch the shell as it comes out.

6. Press the stop again to release the next shell. Continue to do this until the magazine is empty. Be careful not to pinch your finger on the carrier.

7. Using your finger, feel the opening of the magazine to make sure there are no shells that have not been fed from the magazine and ejected. Visually inspect the chamber, feed mechanism and magazine to assure there are no shells remaining.

8. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explained previously. Ensure the firearm is completely unloaded and the “safety” is in the on safe position.

Push inward on the shell stop to unload the magazine.

Unloading by Cycling the Action

1. With the “safety” in the on safe position, slide the bolt latch to the rear, grasp the bolt handle and cycle the action. Repeat sliding the bolt latch to the rear and pulling the bolt handle rearward until all shells are transferred from the magazine to the chamber and then ejected. Lock the bolt assembly in the rearward, open position as explained previously. Take care to avoid letting shells fall to the ground.

2. After the last shell in the magazine has been cycled through the chamber and out the ejection port, use your index finger to feel the opening of the magazine to make sure there are no shells that have not been fed from the magazine and ejected. Visually inspect the chamber, feed mechanism and magazine to assure there are no shells remaining.

INTERCHANGEABLE CHOKE TUBE SYSTEM

BROWNING INVECTOR-DS CHOKE TUBES ARE FOR USE ONLY IN BROWNING SHOTGUNS WITH BACK-BORED BARRELS, AND ARE NOT INTERCHANGEABLE WITH BROWNING STANDARD INVECTOR OR INVECTOR-PLUS CHOKE TUBES. DO NOT USE INVECTOR-DS TUBES IN BARRELS THREADED FOR INVECTOR-PLUS OR STANDARD INVECTOR TUBES. DO NOT USE BROWNING INVECTOR-DS, STANDARD INVECTOR OR INVECTOR-PLUS CHOKE TUBES IN ANY SHOTGUN BARRELS NOT SUPPLIED BY BROWNING. DO NOT USE ANY OTHER CHOKING DEVICE IN ANY SHOTGUN BARREL SUPPLIED BY BROWNING.

USE ONLY THE APPROPRIATE GAUGE OF INVECTOR-DS CHOKE TUBE IN THIS SHOTGUN. DO NOT FIRE THIS SHOTGUN WITHOUT THE CORRECT CHOKE TUBE INSTALLED. DAMAGE MAY RESULT TO THE THREADS INSIDE THE BARREL.

FAILURE TO FOLLOW THIS INFORMATION COULD RESULT IN DAMAGE TO YOUR SHOTGUN OR POSSIBLE INJURY.

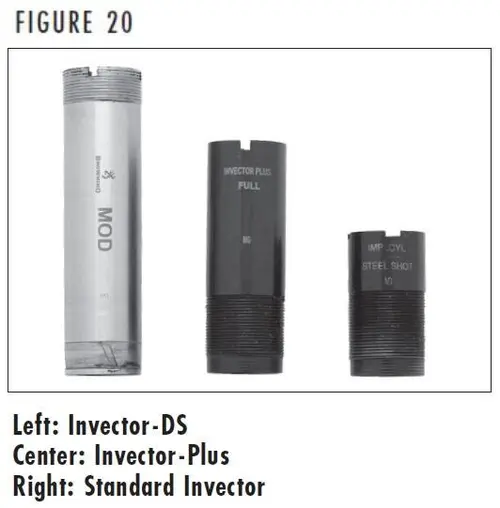

Left: Invector-DS
Center: Invector-Plus
Right: Standard Invector

Use only the Invector-DS choke tube T-Wrench supplied with your shotgun to install and remove Invector-DS choke tubes. Using any other wrench may damage the threads in the barrel.

Current production A5 shotgun barrels are threaded to accept the Invector-DS choke system. Confirm the choke system of your shotgun by looking on the right side of the barrel where the specifications are inscribed. Invector choke tubes are identified in Figure 19 (flush mount tubes are shown).

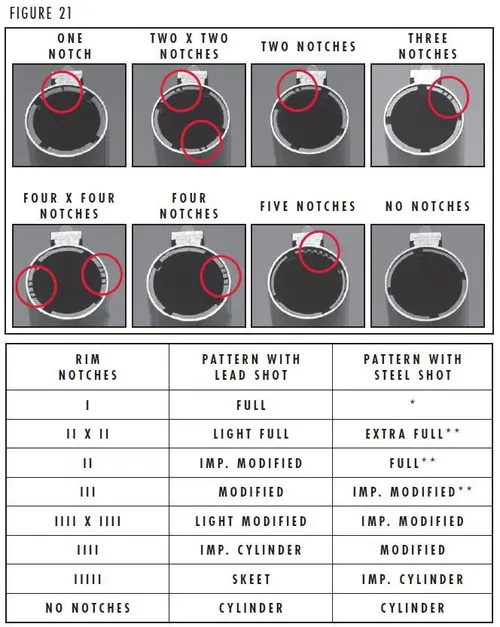

The constriction of each choke tube is indicated twice on the choke tube: On the side of the tube, and indicated with a “notch” code on the top rim of the tube. The included choke tube T-Wrench is used to remove and install choke tubes.

Some target shotguns include premium extended choke tubes. The constriction of premium choke tubes is indicated twice on the choke tube: On the side of the tube, and indicated with an abbreviation in he colored band. The constriction of flush fit choke tubes is indicated twice on the choke tube: On the side of the tube, and indicated with a “notch” code on the top rim of the tube.

The included choke tube T-Wrench is used to remove and install choke tubes.

Invector choke tubes are compatible with factory ammunition that has been loaded in compliance with SAAMI specifications, including magnum lead and steel shot loads, sabots and shotgun slug loads.

Replacement and additional tubes and wrenches are available from your Browning dealer, or by contacting our Consumer Department. See “Service or Repair” for contact information.

CHOKE TUBE SELECTION

To help you choose the correct choke tube for each hunting and shooting situation, all Browning Invector choke tubes are inscribed on the side with the patterns they produce with both lead and steel shot. Each Invector tube also has notches in the top rim of the tube (Figure 20). These notches are a code to identify the choke designation while the tube is installed. Rim notches refer specifically to lead shot. Use the chart on in Figure 20 to cross-reference from lead to steel, and determine the appropriate tubes for your ammunition and hunting/shooting situation.

Several choke tubes are supplied with your shotgun. The choke tubes listed are also available as accessories. Remember, Standard Invector, Invector-Plus and Invector-DS tubes are not interchangeable. Invector-Plus and Invector-DS tubes are for Browning shotguns with back-bored barrels only. Before removing or installing tubes, or reading the rim notch code, make sure the shotgun is fully unloaded.

CHOKE TUBE REMOVAL

1. Place the “safety” in the on safe position. Always make sure the shotgun is completely unloaded. Keep the muzzle pointed in a safe direction.

* Not for use with steel shot. Using an over-tight choke constriction with steel shot will result in an ineffective “blown” pattern.

^** When more than one choke designation is listed for a given steel shot pattern, use the more open choke listed for high velocity, larger shot size steel loads.

2. Use the choke tube T-Wrench to loosen the tube, turning it counterclockwise (Figure 21). Finger-twist the tube the rest of the way out of the barrel.

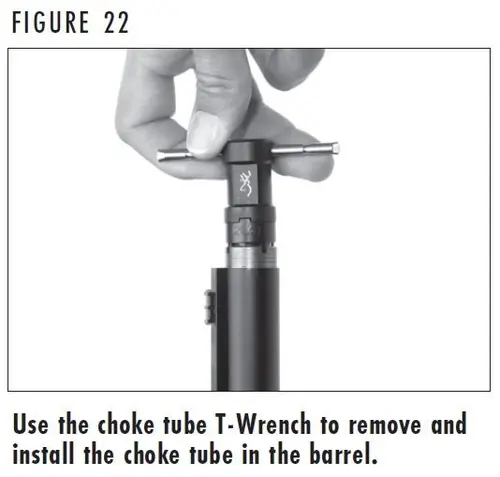

Use the choke tube T-Wrench to remove and install the choke tube in the barrel.

Use only the Invector-DS choke tube T-Wrench supplied with your shotgun to install and remove Invector-DS choke tubes. Using any other wrench may damage the threads in the barrel.

CHOKE TUBE INSTALLATION

1. Place the “safety” in the on safe position. Always make sure the shotgun is completely unloaded. Keep the muzzle pointed in a safe direction.

2. Before installing a tube, check the choke tube threads in the muzzle, as well as the threads on the choke tube to be sure they are clean. If dirty, clean the tube with a nylon brush and gun solvent. Lightly oil the choke tube and threads with a high-quality, lightweight gun oil.

3. Using your fingers, screw the appropriate tube into the muzzle end of the barrel, threaded end outward. When it becomes finger-tight, use the choke tube T-Wrench to firmly seat the tube.

Use only the Invector-DS choke tube T-Wrench supplied with your shotgun to install and remove Invector-DS choke tubes. Using any other wrench may damage the threads in the barrel.

The choke tube should be periodically checked to assure that it is tight and firmly seated. Before checking, follow all the choke tube removal and installation safety guidelines previously outlined.

ADJUSTING LENGTH OF PULL

The buttstock can be adjusted for length of pull by adding or removing spacers (available separately) to the rear of the stock. One ¼" and one ½" thick spacers are included with the A5 (Figure 22). A maximum of ¾" of spacers can be added with the screws provided to extend length of pull. With longer screws (not provided), more than ¾" can be added to extend length of pull.

Spacers can be ordered through your Browning dealer or by calling our Customer Service Department at (800) 322-4626.

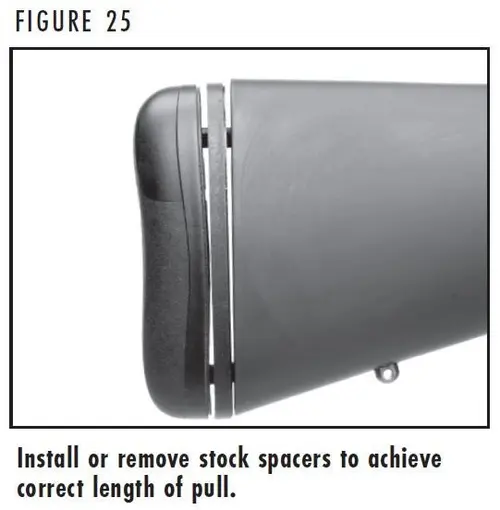

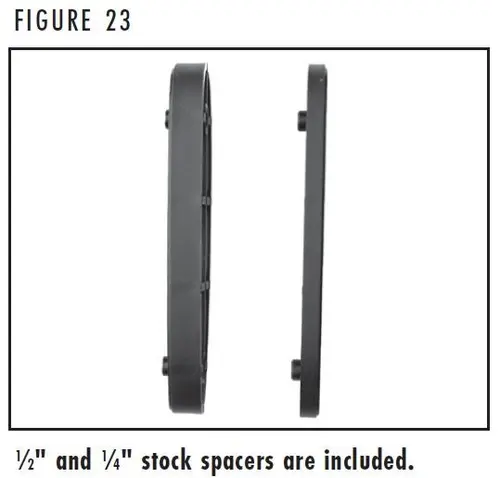

1⁄2" and 1⁄4" stock spacers are included.

Installing a Spacer

IMPORTANT: Before loosening the buttstock to install spacers, the trigger group should be in position in the receiver. This aligns the buttstock and makes assembly easier.

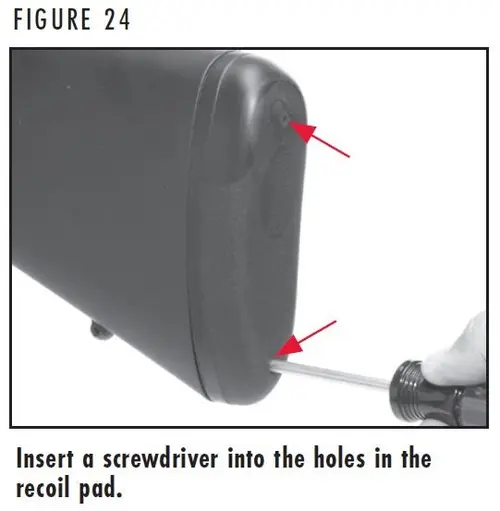

1. Use a #2 cross tip or Phillips screwdriver to remove the recoil pad at the end of the buttstock (Figure 23). Place a small amount of petroleum jelly on the screw access slits on the top and bottom of the rear of the buttstock to prevent damaging the recoil pad. Insert the screwdriver into each of the two access holes. Make sure the tip of the screwdriver engages the head of the screw. Turn the screw counterclockwise until the screw is completely loose from the stock. When both screws are free, remove the recoil pad.

2. Add or subtract spacers to fit your firearm to your specifications (Figure 24). After making an adjustment hold the shotgun to your shoulder to determine if the new length feels comfortable. Remember to always keep the muzzle pointed in a safe direction, with the “safety” in the on safe position and make certain the shotgun is completely unloaded.

3. When you are satisfied with the length of pull, start the screws through the pad and spacer(s) into the holes in the stock.

4. Attach the recoil pad to the stock using the screwdriver. Turn the screws clockwise to tighten. Do not overtighten the screws.

ADJUSTING CAST AND DROP AT COMB

Six shims are included with your new shotgun (Figure 25). The shims fit between the buttstock and receiver, allowing customized adjustments to the comb and heel. Each shim is labeled/stamped for a specific amount of adjustment. The neutral shim, No. 2, is already installed on your shotgun.

Drop at comb is defined as the place on the comb that your cheek rests when taking aim. If drop at comb is correct, your eye naturally falls in line with the sight. Shims marked 1, 2 and 3 do not give any cast on or off. The stock remains straight. They only adjust drop
at comb.

These shims with their respective stamps are further clarified here:

•  Shim 1 raises the comb approximately 1/16", and the heel approximately 1/8".

•  Shim 2 is neutral. This shim is already installed on the firearm.

•  Shim 3 lowers the comb approximately 1/16", and the heel approximately 1/8".

Cast is the offset of the buttstock from the longitudinal center line of the firearm. Some right-handed shooters like the stock to angle away (cast off) from their face, making their line of sight more directly in line with the barrel. Angling the stock to the left for left-handed shooters is “cast on.” Shims marked 1R1L, 2R2L, and 3R3L, will all adjust drop at comb the same amount as shims 1, 2 and 3, and will also adjust the cast right or left approximately 1/8". You will notice that the two opposing edges of these spacers are different in thickness. For right-handed shooters, install shims between the receiver and the stock with the R facing the end of the buttstock, so its thicker side is on the left side. This casts the stock slightly to the right, away from the face of a right-handed shooter. If you turn the shim around so the L is facing the end of the buttstock, and it will cast the stock to the left. These shims with their respective stamps are further clarified here:

•  Shim 1R1L raises the comb approximately 1/16", and the heel approximately 1/8" and will adjust the cast on or cast off approximately 1/8".

•  Shim 2R2L adds the same amount of cast to the stock as shim 1R1L with neutral drop like shim 2.

•  Shim 3R3L adds the same amount of cast to the stock as shims 1R1L and 2R2L, and lowers the comb approximately 1/16" and the heel approximately 1/8".

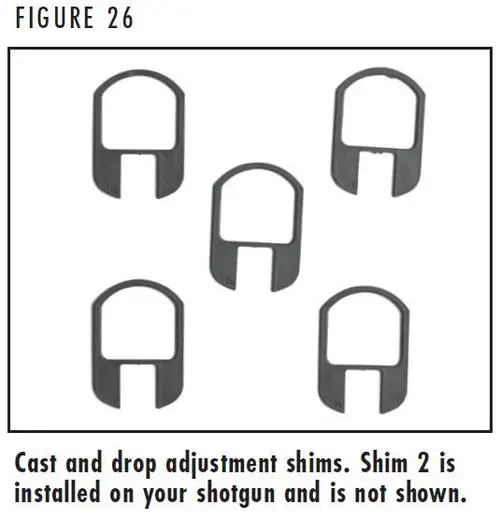

Cast and drop adjustment shims. Shim 2 is installed on your shotgun and is not shown.

INSTALLING A SHIM

IMPORTANT: Before loosening the buttstock to install shims, the trigger group should be in position in the receiver. This aligns the buttstock and makes assembly easier.

1. Make sure your shotgun is completely unloaded and the “safety” is in the on safe position.

2. Use a #2 cross tip or Phillips screwdriver to remove the recoil pad from the buttstock (Figure 23). Place a small amount of petroleum jelly on the screw access slits on the top and bottom of the rear of the buttstock to prevent damaging the recoil pad. Insert the screwdriver into each of the two access holes. Make certain the tip of the screwdriver engages the head of the screw. Turn the screw counterclockwise until the screw is completely loose from the stock. When both screws are free, remove the recoil pad.

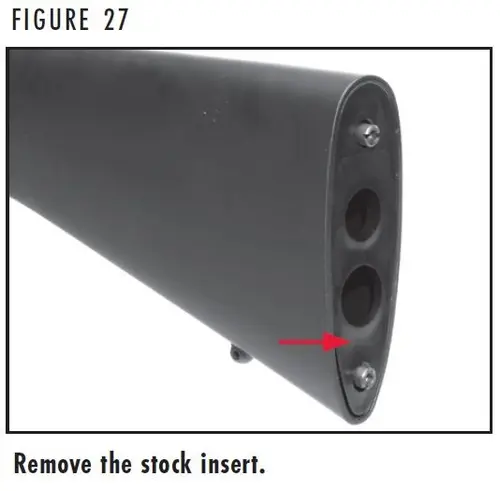

3. Remove the stock insert to access the stock bolt nut (Figure 26).

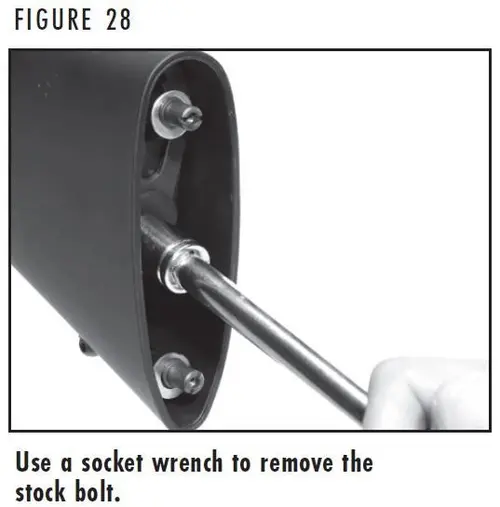

4. Use a ½" socket wrench to remove the stock bolt nut and stock bolt washer. (Figure 27).

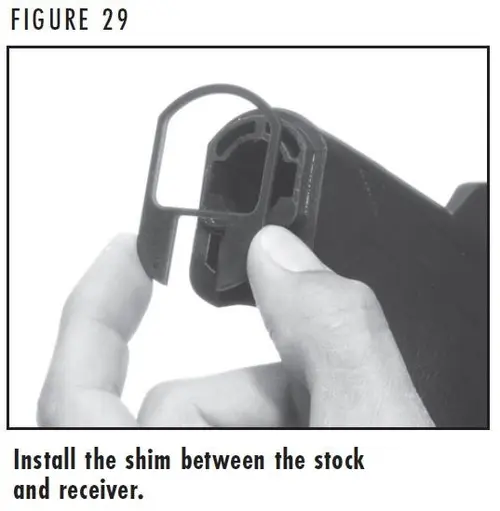

5. Completely remove the buttstock from the receiver, along with the existing shim, and install the shim you have selected (Figure 28). Make certain you have the proper shim installed and in position before reattaching the buttstock and recoil pad.

6. When you are satisfied with the fit, reattach the buttstock to the receiver with the washer and the nuts.

7. Snug the nut with the ½" socket wrench, do not overtighten.

8. Reinstall the stock insert.

9. Reinstall the recoil pad with care, so as not to scratch or mar the finish of the stock.

EXTRA BARRELS

The versatility of your new shotgun can be extended with an extra barrel. A5 shotgun barrels are interchangeable within a given gauge and chamber length. No special fitting is required. However, some important restrictions must be observed:

• Never use a barrel with a 3½" chamber on a shotgun designed for barrels with a 3" chamber.

• Never use a barrel with a 3" chamber on a shotgun designed for barrels with a 3½" chamber.

• Never use any other barrel from any other manufacturer on your shotgun. Some other brands may seem similar, but the barrels are not interchangeable.

• Never use a barrel from any other Browning shotgun.

CLEANING AND MAINTENANCE SUGGESTIONS

SOME CLEANING SOLVENTS, LUBRICANTS AND OTHER STRONG CHEMICALS SUCH AS THOSE FOUND IN INSECT REPELLENTS, SUNSCREENS, ETC. MAY DAMAGE THE FINISHES OF YOUR FIREARM. USE CARE TO PREVENT CHEMICALS FROM MAKING CONTACT WITH FINISHES WHEN CLEANING YOUR FIREARM.

CLEANING THE BARREL

Your A5 shotgun will function better and more reliably over a longer period of time if it is properly maintained and kept clean. You should clean your shotgun after every day of shooting, and more often if it becomes excessively dirty. At a minimum the barrel should be cleaned and the action wiped clean and oiled after every day of shooting. The slide assembly should require only occasional cleaning.

Normal maintenance can be accomplished with the barrel still attached to the receiver (oiling and wiping down). More careful cleaning requires removal of the barrel from the receiver (cleaning the barrel) and the removal of the slide assembly. A complete cleaning requires removal of the slide assembly and trigger group.

If a malfunction occurs, perform a thorough cleaning to see if it solves the problem before seeking the services of a Browning Recommended Service Center, the Browning Service Facility in Arnold, Missouri, or a qualified gunsmith.

1. Place the “safety” in the on safe position. Open the action and inspect the chamber and magazine to make certain they do not contain any shells. Keep the muzzle pointed in a safe direction.

2. Remove the forearm and barrel as explained under “Disassembly”.

3. Using a shotgun cleaning rod with a slotted tip or cleaning jag and a patch large enough for a snug fit in the bore, insert the rod and a lightly oiled patch into the breech end of the barrel and run it back and forth through the bore several times. Remove and wipe the choke tube, threads and barrel threads with a nylon brush and lightly oil.

Browning offers a complete line of products to make cleaning your firearm fast and easy. Be sure to follow the manufacturers' instructions when using any product to clean your firearm.

4. Inspect the bore from both ends for leading and plastic residue that often remains in the bore from the shot cups in modern shells. Leading and plastic residue will appear as longitudinal streaks and is usually more predominant near the muzzle and just forward of the chamber. A normal amount of either is common and not serious.

5. If leading or plastic residue seems excessive you can remove it by brushing the bore with a bronze brush. Soak the brush or spray the bore with a powder solvent first. Scrub until clean. To prevent bristles from breaking off, push the brush fully through the barrel each time before pulling it back through.

6. After all leading and plastic residues have been removed, run a clean, dry patch through the bore. Follow this with a final, lightly oiled patch to help prevent corrosion.

7. Reassemble the shotgun and wipe all exposed metal surfaces with an oiled cloth making sure to wipe away all finger marks where moisture could accumulate.

8. Inspect the barrel and chamber. Remove any cleaning patches or debris that remain.

9. Lightly oil your firearm at the points described under “Periodic Oiling” below. Regular, light oiling is extremely important to the durability and reliable operation of your shotgun.

10. The wood surfaces can also be wiped with a quality, lightweight gun oil or they can be polished with any quality furniture wax (but not both).

PERIODIC OILING

The metal parts of a firearm should receive a light film of oil after the firearm has been exposed to weather or handling.

Occasionally, a drop of lightweight gun oil may be placed inside the receiver on the rails on which the slide assembly slides (Figure 3). This reduces friction for smooth operation.

If the firearm has been exposed to excessive dust, dirt, mud or water, the principal working parts including slide assembly, should be wiped clean and lubricated with a light film of quality, lightweight gun oil.

DO NOT PLACE LARGE QUANTITIES OF OIL INTO THE ACTION. EXCESS OIL WILL RUN BACK INTO THE WOOD OF THE STOCK SOFTENING THE WOOD, WITH CONSEQUENTIAL LOOSENING OF THE STOCK.

REMOVAL OF THE TRIGGER GROUP

The trigger group can be removed if the action becomes excessively dirty or wet. If this occurs, disassemble the action for a complete cleaning as explained in the following sections. The trigger group of your A5 shotgun can be removed in the field with only a small punch.

Disassembly of the action involves the removal of the slide assembly and the trigger group. Disassembly beyond this point should only be performed by a qualified gunsmith.

REMOVING THE TRIGGER GROUP

1. Place the slide assembly in the forward position by holding the bolt handle and depressing the bolt release button.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

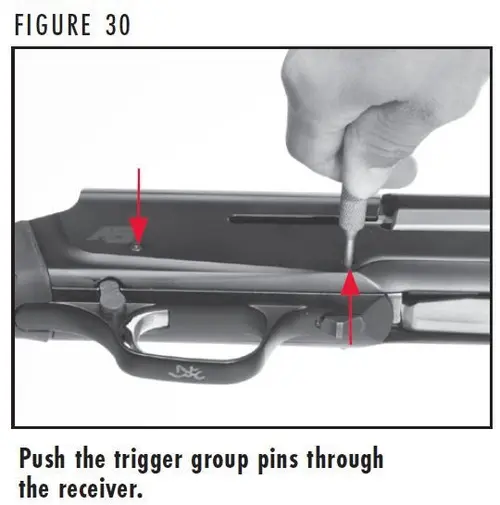

2. Use a non-marring punch or similar object to push inward on the trigger guard pins, taking care not to scratch the receiver (Figure 29). Trigger group pins may be removed from either side of the receiver. Push the trigger group pins through the receiver. Pull on them from the opposite side to remove them.

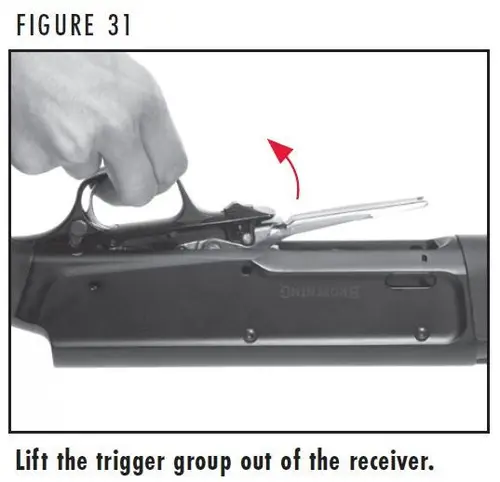

3. Grasp the trigger guard and pull it up and out of the receiver (Figure 30).

4. Perform any cleaning of the parts and receiver cavity as necessary. We suggest cleaning the trigger group with a quality aerosol gun solvent. Allow it to dry and then very lightly oil the moving parts.

DO NOT DISASSEMBLE THE TRIGGER GROUP BEYOND THIS POINT.

REINSTALLATION OF THE TRIGGER GROUP

1. Make sure the slide assembly is in the forward position.

2. Insert the rear of the trigger group into the receiver.

3. Press the bolt release button.

4. Insert the front of the trigger group into the receiver.

5. Align the holes in the trigger group with the holes on each side of the receiver.

6. Insert the trigger guard pins and gently tap them into place with a plastic or wooden mallet, again using caution not to scratch the receiver.

MAINTENANCE OF THE SLIDE ASSEMBLY

The slide assembly can be removed if the action becomes excessively dirty or wet. If this occurs, disassemble the action for a complete cleaning as explained in the following sections. The slide assembly of your A5 shotgun is designed to be removed in the field, without special tools.

Disassembly of the action involves the removal of the slide assembly and the trigger group. Disassembly beyond this point should only be performed by a qualified gunsmith.

The slide assembly should occasionally be removed for cleaning and lubrication. Follow the instructions in this section to remove the slide assembly.

1. Lock the slide assembly rearward by first sliding the bolt latch to the rear, then pulling the bolt handle fully to the rear as explained previously.

2. Remove the barrel and forearm as explained previously.

3. Carefully place the slide assembly in the forward position by retaining the bolt handle and pressing the bolt release button.

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT THE BARREL INSTALLED. IF THE SLIDE ASSEMBLY IS RELEASED FORWARD WITH THE BARREL REMOVED, THE BOLT HANDLE WILL STRIKE THE RECEIVER AND CAUSE DAMAGE.

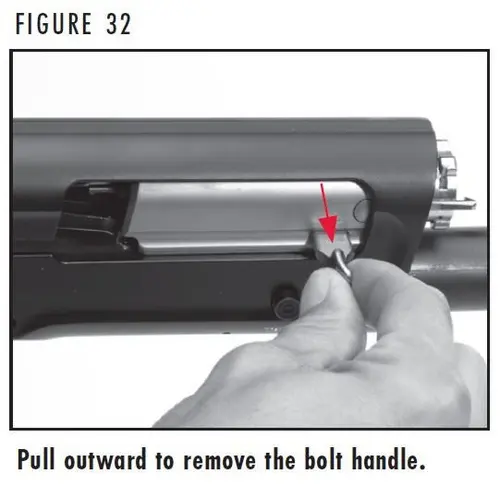

4. Remove the bolt handle by pulling the bolt handle outward (Figure 31).

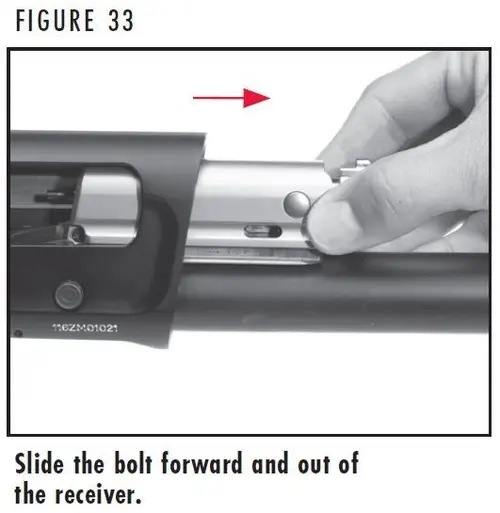

5. Slide the slide assembly forward and out of the receiver (Figure 32).

IDENTIFY THE SLIDE ASSEMBLY

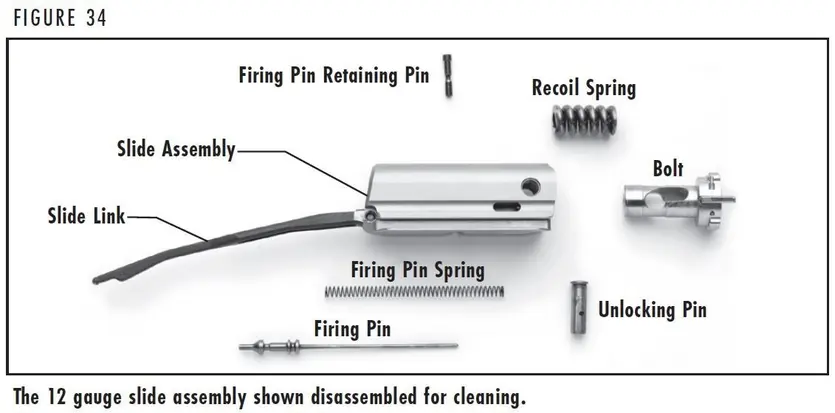

Prior to disassembly, you must first identify the slide assembly in your A5. There are two types of slide assemblies in A5 shotguns. To identify the slide assembly in your A5, follow these guidelines:

Type A: This slide assembly utilizes a firing pin spring within the slide assembly. The Type A slide assembly is readily identified by pressing on the rear of the firing pin and feeling spring resistance.

Type B: This version does not use a firing pin spring within the slide assembly. The Type B slide assembly is readily identified by pressing on the rear of the firing pin and noting the lack of spring resistance.

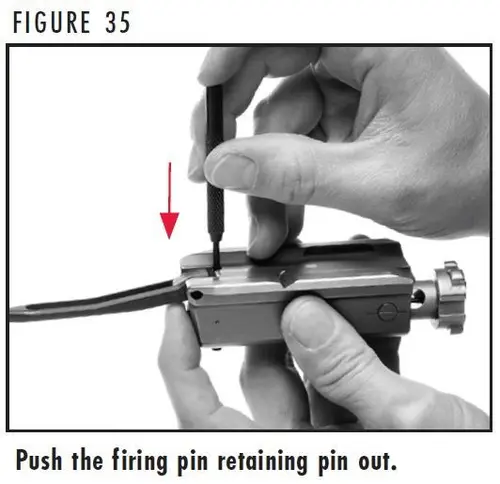

3. Insert a small punch into the hole in the bottom of the slide assembly (Figure 34) and press the firing pin retaining pin out the top of the slide assembly. Remove the pin (Figure 35).

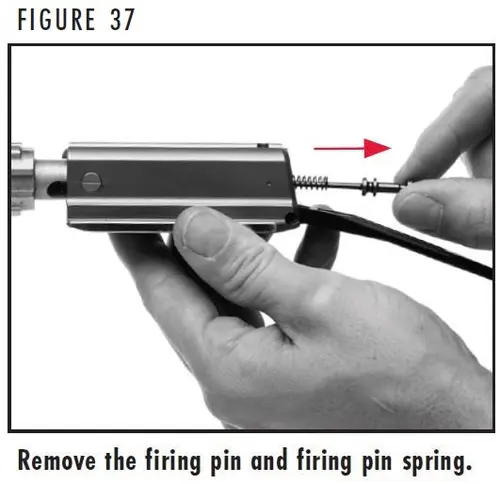

4. Carefully release the pressure on the firing pin and firing pin spring. Remove the firing pin and firing pin spring (Figure 36).

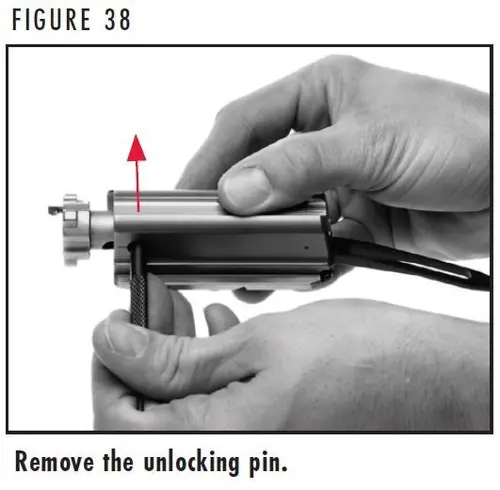

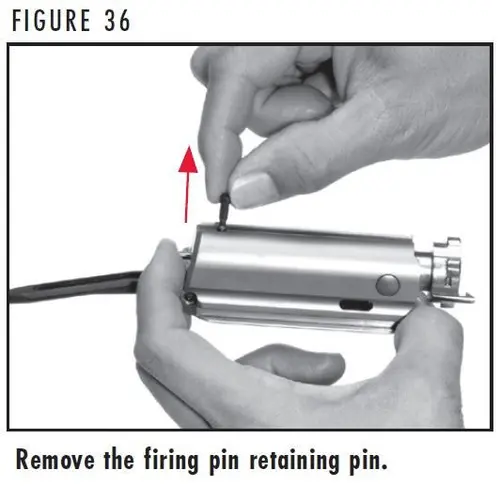

5. Using a punch, press inward on the unlocking pin from the left side of the slide assembly and remove the unlocking pin (Figure 37).

6. Remove the bolt from the front of the slide assembly.

7. Remove the recoil spring from the front of the slide assembly.

IMPORTANT: Do not push the rear end of the firing pin into the slide assembly opening beyond a position that is flush.

IMPORTANT: Do not force the firing pin into the opening. If the firing pin will not easily go into the slide assembly, the hole in the unlocking pin may need to be aligned.

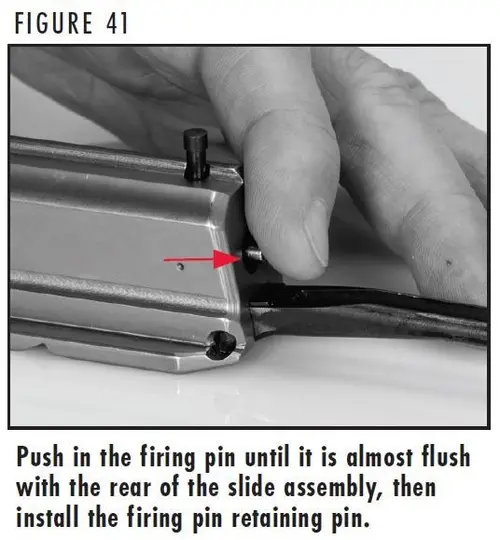

5. Holding the firing pin in this position in the slide assembly, insert the firing pin retaining pin into the hole in the top of the slide assembly.

TYPE B DISASSEMBLY PROCEDURE

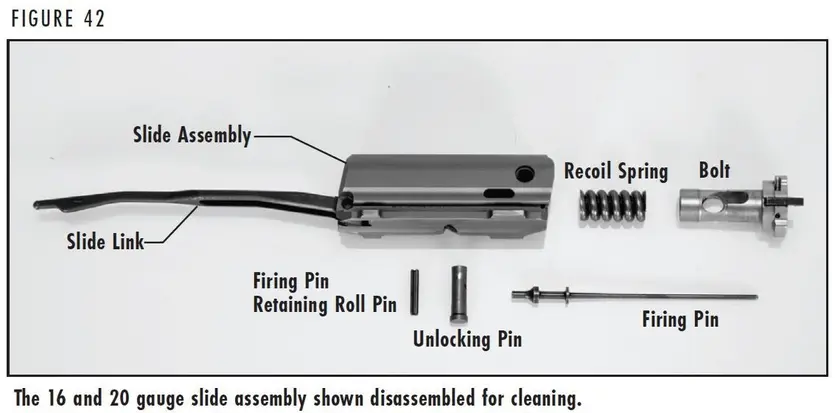

Figure 41 shows the Type B slide assembly completely disassembled with parts labeled for reference. Follow the instructions in this section to disassemble the slide assembly.

1. Remove the slide assembly as explained previously.

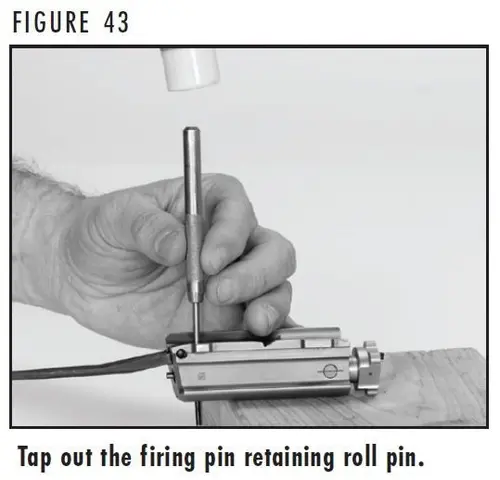

2. Place the bolt, bottom side up, on an armorer's block or a block of wood. Align the roll pin hole with the hole in the armorer's block or on the edge of the block of wood. Insert a small roll pin punch into the role pin hole in the bottom of the slide assembly and use a small gunsmithing-type hammer to drive the firing pin retaining roll pin out the top ofthe slide assembly until it falls free from the slide assembly. (Figure 42).

3. Using a punch, press inward on the unlocking pin from the left side of the slide assembly and remove the unlocking pin (Figure 37).

4. Remove the bolt from the front of the slide assembly.

5. Remove the recoil spring from the front of the slide assembly. Clean the parts of the slide as necessary using a quality aerosol gun solvent. Allow the parts to dry and then lightly oil the parts.

TYPE B REASSEMBLY PROCEDURE

1. Insert the recoil spring into the front of the slide assembly.

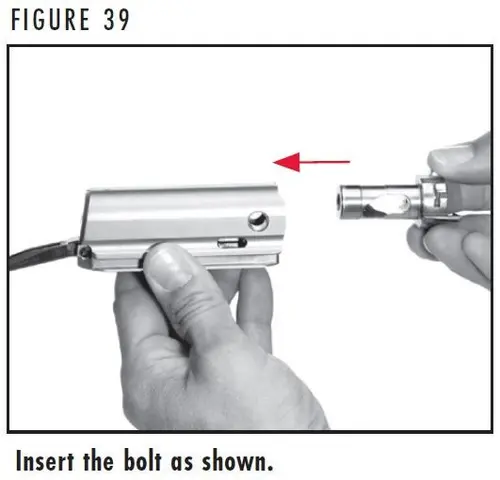

2. Insert the bolt into the front of the slide assembly (Figure 38). Be sure the extractor is on the right side of the bolt slide. Align the hole in the slide assembly with the cut in the bolt.

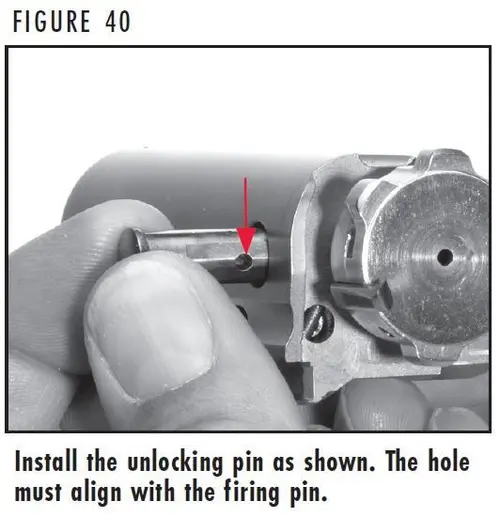

3. Insert the unlocking pin into the hole in the right side (bolt handle side) of the slide assembly and push it through the bolt. Ensure the hole in the unlocking pin is facing forward to allow the firing pin to pass though (Figure 39).

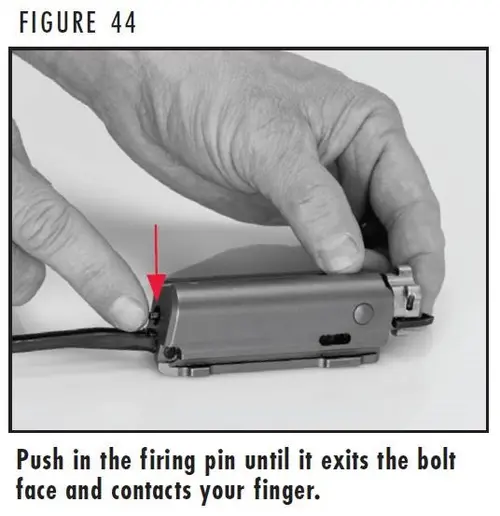

4. Insert the firing pin into the opening at the rear of the slide assembly. To get the firing pin to the correct depth prior to installing the firing pin retaining roll pin, first place the bolt in the rear most position in the bolt slide. Next, place your finger on the face of the bolt, covering the hole the firing pin extends from.
Push the firing pin from the rear until you can feel the firing pin protruding through the bolt face with your finger (Figure 43). This is the correct depth for the firing pin.

IMPORTANT: Do not push the rear end of the firing pin into the slide assembly opening beyond a position that is flush.

IMPORTANT: Do not force the firing pin into the opening. If the firing pin will not easily go into the slide assembly, the hole in the unlocking pin may need to be aligned.

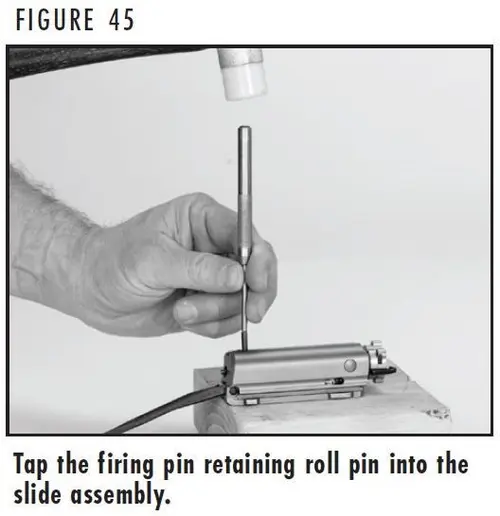

5. Using a small gunsmithing-type hammer and roll pin punch, gently drive the firing pin retaining roll pin into the top of the slide assembly until it fits flush. When installing the firing pin retaining roll pin take care that the firing pin does not migrate from the correct depth (Figure 44).

Installing the slide Assembly

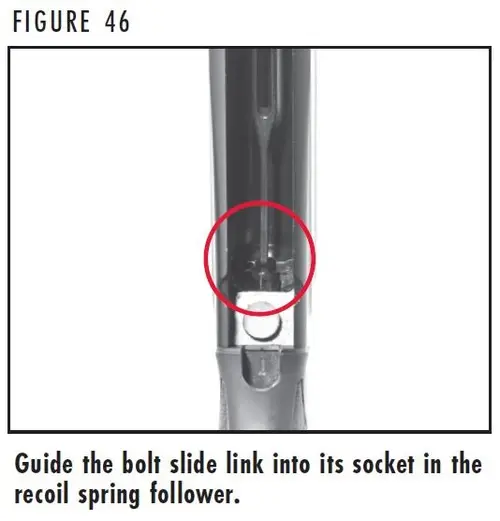

1. Turn the shotgun upside down to make it easier to align the slide link and the socket in the recoil spring follower.

2. Align slide assembly rails with the grooves in the receiver. Insert the slide assembly into the receiver, slide link end first.

3. Insert the bolt handle into the slot in the slide assembly.

4. Carefully open and close the action several times to make sure the slide link and recoil spring follower are properly engaged (Figure 45).

NEVER ALLOW THE ACTION TO SLAM CLOSED BY PRESSING THE BOLT RELEASE BUTTON WITHOUT HAVING THE BARREL INSTALLED. DAMAGE WILL RESULT TO THE RECEIVER AND BOLT HANDLE.

5. Install the trigger group in the receiver as explained previously.

CLEANING THE ACTION

1. When the action becomes excessively dirty, remove the trigger group and slide assembly from the receiver as explained under “Removal of the Trigger Group” and “Maintenance of the Slide Assembly”. Clean with a gun solvent as necessary. Use a nylon brush to loosen caked-on grime. Wipe the receiver cavity clean. Lightly oil the cavity and wipe it dry. No further disassembly is required for cleaning.

2. Reassemble the trigger group, slide assembly, and the barrel and forearm to the receiver as explained previously, making sure the barrel and action have no cleaning patches inadvertently left in them. Then wipe all exposed metal surfaces with an oiled cloth, making sure to wipe clean all finger marks where moisture could accumulate.

Lubricating the Action Tube and Spring

If you frequently use your shotgun in inclement weather conditions, oiling the action tube and spring will aid in maintaining the performance and reliability of your firearm.

IMPORTANT: Before loosening the buttstock to lubricate the action tube and spring, the trigger group should be in position in the receiver. This aligns the buttstock and makes assembly easier.

1. Remove the recoil pad and buttstock as explained previously.

2. Place a few drops of high-quality lightweight gun oil in the opening in the rear of the action tube (Figure 46).

3. Hold the shotgun with the muzzle down. Cycle the action using the bolt handle to operate the action several times to evenly disperse the oil on the spring and inside the action tube.

DO NOT USE EXCESSIVE LUBRICANT. USING TOO MUCH LUBRICANT CAN INTERFERE WITH THE FUNCTIONING OF YOUR SHOTGUN. DO NOT SPRAY SOLVENT INSIDE THE ACTION TUBE.

4. Carefully rest the shotgun vertically on a rag with the action tube down for 15 minutes to allow excess oil to drain out of the action tube. Wipe away any excess oil.

5. Lightly lubricate the external surface of the action tube.

6. Install the buttstock and recoil pad as explained previously.

NEVER ATTEMPT TO TAKE YOUR FIREARM APART FURTHER THAN EXPLAINED IN THIS OWNER’S MANUAL. YOUR FIREARM IS A SPECIALIZED, FINELY FITTED MECHANISM. YOU MAY PERMANENTLY DAMAGE IT BY ATTEMPTING TO DISASSEMBLE THE INNER MECHANISM ASSEMBLIES. IF FURTHER DISASSEMBLY FOR SERVICE OR CLEANING IS REQUIRED, TAKE YOUR FIREARM TO A QUALIFIED GUNSMITH, OR CONTACT OUR ARNOLD, MISSOURI SERVICE FACILITY AS EXPLAINED UNDER “SERVICE OR REPAIR”.

MAINTENANCE OF OIL FINISH STOCKS

Keeping the oil-finished wood surface on your firearm looking its best requires only a small amount of maintenance. When the surface becomes spotted or dull, the affected area(s) can be treated using rubbing alcohol on a soft, lint free cloth and allowed to dry. A small amount of a linseed oil-based finish, such as Watco^® Danish Oil Finish, Deft^® Danish Oil Finish, or Formby’s^® Tung Oil Finish should then be applied to the surface of the wood with a soft, lint free cloth according to the manufacturer’s instructions. To treat the checkering, a small amount of oil-based finish can be applied and then distributed evenly using a toothbrush or other soft bristled brush.

MODELS WITH SPECIAL FINISHES

As with any firearm, the only way to preserve its pristine condition and collector appeal is to never handle or fire it, which in turn would deprive you of much of the enjoyment that comes with owning a fine Browning firearm.

While special finishes such as engraving and gold plating greatly enhance the aesthetic appeal of your shotgun, please be aware that they are no more durable, and in some cases may even be slightly less durable than more common firearm finishes.

As you use your shotgun, you can expect special finishes to wear in much the same manner as any other firearm finish. These marks are the honest product of the hours spent enjoying your firearm and each scuff and scratch will probably have a good story to go along with it.

SERVICE OR REPAIR

If your firearm should require service or repairs, we suggest you first contact a local recommended Browning Firearms Service Center. To locate a service center visit browning.com, contact our Customer Service Department or your Browning firearms dealer for the address of the Service Center nearest you. Otherwise, you may send your firearm directly to our Service Department in Arnold, Missouri.

Parts listings, Firearm Service Center lists, service procedures, service/repair form and general product information are also found on the internet at browning.com. For technical questions about your firearm or service, contact:

United States customers contact:

Browning Firearm Status and
Technical Service
3005 Arnold Tenbrook Rd
Arnold, MO 63010-9406
Phone: (800) 322-4626

Canadian customers contact:

Browning Canada Sports Ltd/Ltée
5583 Chemin St-François
St-Laurent, Quebec H4S 1W6
Phone: (514) 333-7261

When returning your firearm for servicing, you must do the following:

1. Be sure it is completely unloaded.

2. Remove any optics, optic mounts or other accessories.

3. Package it securely in a cardboard container.

4. Enclose the service/repair form available at browning.com or a letter that clearly describes the trouble experienced, the ammunition used and the repairs desired. Also include your name, e-mail address (if possible) and a daytime phone number where you can be reached.

5. Never return ammunition with your firearm. It is against postal and most commerce regulations.

STATE-BY-STATE WARNINGS

CERTAIN STATES REQUIRE, BY LAW, THAT THEIR OWN SPECIFIED WARNING NOTICES BE INCLUDED BY THE MANUFACTURER, DISTRIBUTOR, OR RETAIL DEALER WITH FIREARMS SOLD IN THAT STATE. BROWNING SELLS ITS PRODUCTS IN COMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. BECAUSE OUR PRODUCTS MAY BE SOLD IN THESE STATES, WE INCLUDE THE FOLLOWING:

CALIFORNIA

Firearms must be handled responsibly and securely stored to prevent access by children and other unauthorized users. California has strict laws pertaining to firearms, and you may be fined or imprisoned if you fail to comply with them. Visit the Web site of the California Attorney General at https://oag.ca.gov/firearms for information on firearm laws applicable to you and how you can comply.

Prevent child access by always keeping guns locked away and unloaded when not in use. If you keep a loaded firearm where a child obtains and improperly uses it, you may be fined or sent to prison.

If you or someone you know is contemplating suicide, please call the National Suicide Prevention Lifeline at 1-800-273-TALK (8255).

Las armas de fuego deben de ser manipuladas responsablemente y almacenadas en sitios seguros para prevenir el acceso a ellas por parte de niños y personas sin autorización. California cuenta con leyes estrictas sobre las armas de fuego, y puede ser multado y encarcelado si no las obedece. Visite la página web de California Attorney General, https://oag.ca.gov/firearms para más información sobre cómo cumplir con las leyes de armas de fuego.

Prevenga el acceso de los niños a las armas de fuego manteniéndolas siempre en un lugar seguro, bajo llave y descargadas cuando no estén en uso. Si usted deja un arma cargada al alcance de un niño, y éste la utiliza indebidamente,usted podría ser multado e incluso enviado a la cárcel.

Si usted o alguien que conoce está pensando en suicidarse, llame a la línea Nacional de Prevención del Suicidio al 1-800-273-TALK (8255)

CONNECTICUT

“UNLAWFUL STORAGE OF A LOADED FIREARM MAY RESULT IN IMPRISONMENT OR FINE.”

FLORIDA

“IT IS UNLAWFUL, AND PUNISHABLE BY IMPRISONMENT AND FINE, FOR ANY ADULT TO STORE OR LEAVE A FIREARM IN ANY PLACE WITHIN THE REACH OR EASY ACCESS OF A MINOR UNDER 18 YEARS OF AGE OR TO KNOWINGLY SELL OR OTHERWISE TRANSFER OWNERSHIP OR POSSESSION OF A FIREARM TO A MINOR OR A PERSON OF UNSOUND MIND.”

MAINE

“ENDANGERING THE WELFARE OF A CHILD IS A CRIME. IF YOU LEAVE A FIREARM AND AMMUNITION WITHIN EASY ACCESS OF A CHILD, YOU MAY BE SUBJECT TO FINE, IMPRISONMENT OR BOTH. KEEP FIREARMS AND AMMUNITION SEPARATE. KEEP FIREARMS AND AMMUNITION LOCKED UP. USE TRIGGER LOCKS.”

MARYLAND

“WARNING: Children can operate firearms which may cause death or serious injury. It is a crime to store or leave a loaded firearm in any location where an individual knew or should have known that an unsupervised minor would gain access to the firearm. Store your firearm responsibly!”

MASSACHUSETTS

“WARNING FROM THE MASSACHUSETTS ATTORNEY GENERAL: This handgun is not equipped with a device that fully blocks use by unauthorized users. More than 200,000 firearms like this one are stolen from their owners every year in the United States. In addition, there are more than a thousand suicides each year by younger children and teenagers who get access to firearms. Hundreds more die from accidental discharge. It is likely that many more children sustain serious wounds, or inflict such wounds accidentally on others. In order to limit the chance of such misuse, it is imperative that you keep this weapon locked in a secure place and take other steps necessary to limit the possibility of theft or accident. Failure to take reasonable preventative steps may result in innocent lives being lost, and in some circumstances may result in your liability for these deaths.”

“IT IS UNLAWFUL TO STORE OR KEEP A FIREARM, RIFLE, SHOTGUN OR MACHINE GUN IN ANY PLACE UNLESS THAT WEAPON IS EQUIPPED WITH A TAMPER RESISTANT SAFETY DEVICE OR IS STORED OR KEPT IN A SECURELY LOCKED CONTAINER.”

NEW JERSEY

“IT IS A CRIMINAL OFFENSE TO LEAVE A LOADED FIREARM WITHIN EASY ACCESS OF A MINOR.”

NEW YORK CITY, NEW YORK

“THE USE OF A LOCKING DEVICE OR SAFETY LOCK IS ONLY ONE ASPECT OF RESPONSIBLE WEAPON STORAGE. ALL WEAPONS SHOULD BE STORED UNLOADED AND LOCKED IN A LOCATION THAT IS BOTH SEPARATE FROM THEIR AMMUNITION AND INACCESSIBLE TO CHILDREN AND ANY OTHER UNAUTHORIZED PERSONS. NEW YORK CITY LAW PROHIBITS, WITH CERTAIN EXCEPTIONS, ANY PERSON FROM ACQUIRING MORE THAN ONE FIREARM, OR MORE THAN ONE RIFLE OR SHOTGUN, WITHIN A 90-DAY PERIOD.”

NORTH CAROLINA

“IT IS UNLAWFUL TO STORE OR LEAVE A FIREARM THAT CAN BE DISCHARGED IN A MANNER THAT A REASONABLE PERSON SHOULD KNOW IS ACCESSIBLE TO A MINOR.”

Any person who resides in the same premises as a minor, owns or possesses a firearm, and stores or leaves the firearm (i) in a condition that the firearm can be discharged and (ii) in a manner that the person knew or should have known that an unsupervised minor would be able to gain access to the firearm, is guilty of a Class 1 misdemeanor if a minor gains access to the firearm without the lawful permission of the minor’s parents or a person having charge of the minor and the minor:

(1)       Possesses it in violation of G.S. 14-269.2(b)

(2)       Exhibits it in a public place in a careless, angry, or threatening manner;

(3)       Causes personal injury or death with it not in
             self defense; or

(4)       Uses it in the commission of a crime.

TEXAS

“IT IS UNLAWFUL TO STORE, TRANSPORT, OR ABANDON AN UNSECURED FIREARM IN A PLACE WHERE CHILDREN ARE LIKELY TO BE AND CAN OBTAIN ACCESS TO THE FIREARM.”

WISCONSIN

“IF YOU LEAVE A LOADED FIREARM WITHIN THE REACH OR EASY ACCESS OF A CHILD YOU MAY BE FINED OR IMPRISONED OR BOTH IF THE CHILD IMPROPERLY DISCHARGES, POSSESSES, OR EXHIBITS THE FIREARM.”

PLEASE CONSULT YOUR LOCAL FEDERALLY LICENSED FIREARMS RETAILER, STATE POLICE OR LOCAL POLICE FOR ADDITIONAL WARNINGS THAT MAY BE REQUIRED BY LOCAL LAW OR REGULATION. FIREARMS REGULATIONS CHANGE CONSTANTLY AND YOUR LOCAL AUTHORITIES ARE THE BEST SOURCE FOR THE MOST CURRENT INFORMATION ON SUCH LEGAL MATTERS.

BROWNING.COM

US: Morgan, Utah 84050-9326

CANADA: Browning Canada Sports Ltd/Ltée, St-Laurent, Quebec H4S 1W6

INTL: Parc Industriel des Hauts-Sarts, B-4040 Herstal, Belgium

23-BFA-228
