Overview
Overview

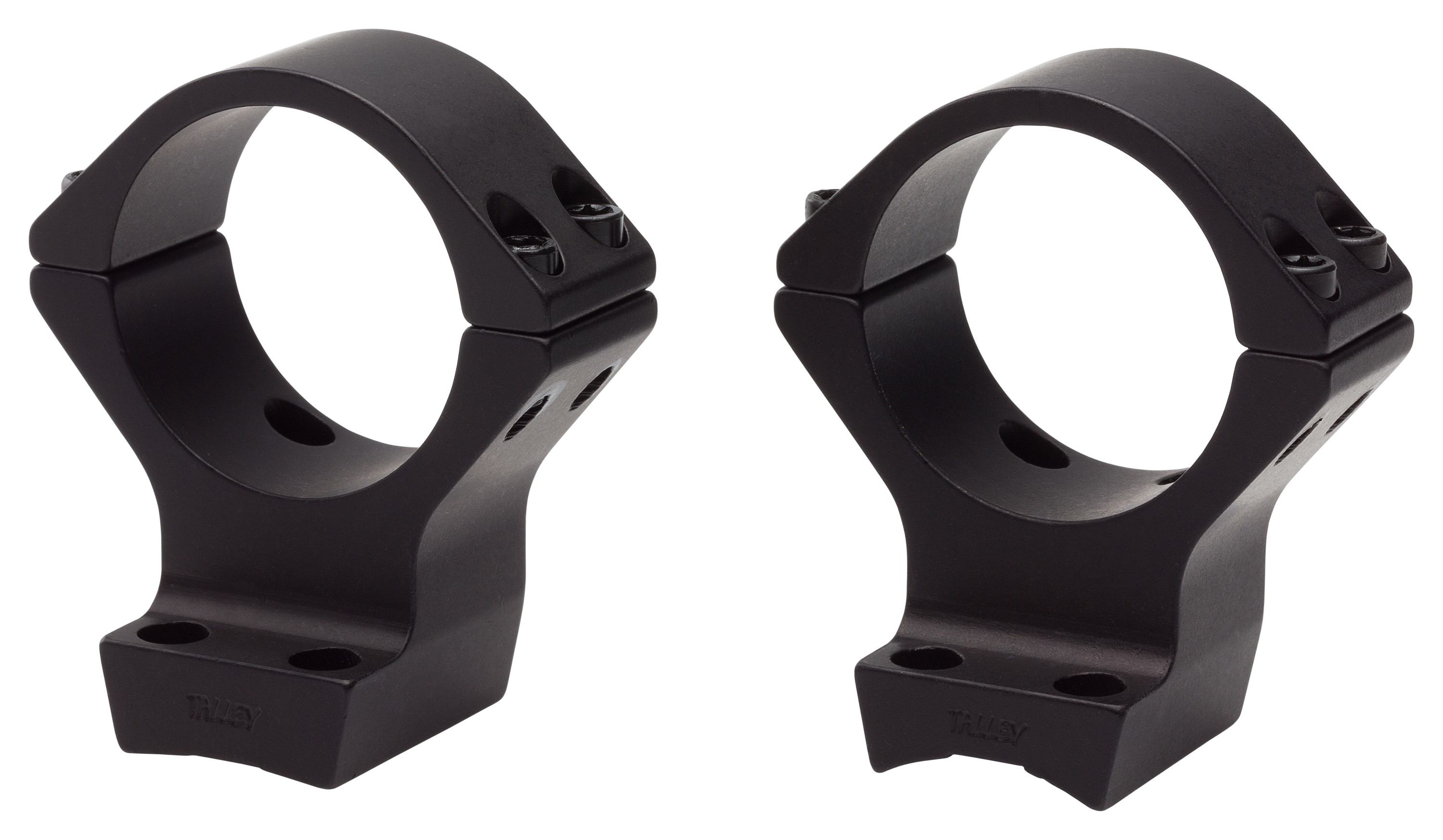

This high-quality, integrated scope base/ring system provides an additional 20 MOA of elevation so you can dial in more drop on your scope before you have to start "stacking" MOA/Mils.
Securely mounted optics are essential to the accuracy and precision of any rifle. To ensure your X-Bolt/X-Bolt 2 has the most stable mount possible, this system features the X-Lock scope mounting system that uses four screws per base, replacing the traditional two-screw system. Securing the scope bases at all four corners rather than only held at the center enables more accurate placement of the bases on the receiver and holds the base tighter to the rifle than ever before.
Features
Features
- Integrated Scope Mounts unitize the ring and base into a single unit machined from 7000 series aluminum to eliminate alignment problems and possible loose connections between bases and rings.
- Provides you with an additional 20 MOA of elevation so you can dial in more drop on your scope before you have to start "stacking" MOA/Mils.
- Available for both 30mm and 34mm scope tube diameters in a matte blued finish.
- Use the .400" Low ring height for scopes up to a 44mm objective with a standard barrel contour.
- Use the .500" Medium ring height for scopes up to a 50mm objective with a standard barrel contour.
- Use the .600" High ring height for scopes up to a 56mm objective with a standard barrel contour.
THESE INTEGRATED RINGS ONLY FIT X-BOLT AND X-BOLT 2 RIFLES
THESE INTEGRATED RINGS ONLY FIT X-BOLT AND X-BOLT 2 RIFLES
Type
| Item Number 12581 | UPC 023614981640 |
| Material Alloy | Color Black |
| Finish Matte Blued | Length 0" |
| Mount Pieces Two Piece | Action Length Short Action |
| Ring Diameter 30 mm | Ring Height Low |
| Screw Quantity 8 | Bases Screws 0.25 |
| Ring Screws 0.375 | Weight 6.4 oz |
| MSRP $114.99 |
| Item Number 12582 | UPC 023614981657 |
| Material Alloy | Color Black |
| Finish Matte Blued | Length 0" |
| Mount Pieces Two Piece | Action Length Short Action |
| Ring Diameter 30 mm | Ring Height Medium |
| Screw Quantity 8 | Bases Screws 0.25 |
| Ring Screws 0.375 | Weight 6.4 oz |
| MSRP $114.99 |
| Item Number 12583 | UPC 023614981664 |
| Material Alloy | Color Black |
| Finish Matte Blued | Length 0" |
| Mount Pieces Two Piece | Action Length Short Action |
| Ring Diameter 30 mm | Ring Height High |
| Screw Quantity 8 | Bases Screws 0.25 |
| Ring Screws 0.375 | Weight 6.4 oz |
| MSRP $114.99 |
| Item Number 12575 | UPC 023614981589 |
| Material Alloy | Color Black |
| Finish Matte Blued | Length 0" |
| Mount Pieces Two Piece | Action Length Short Action |
| Ring Diameter 34 mm | Ring Height Low |
| Screw Quantity 8 | Bases Screws 0.25 |
| Ring Screws 0.375 | Weight 6.4 oz |
| MSRP $114.99 |
| Item Number 12576 | UPC 023614981596 |
| Material Alloy | Finish Matte Blued |
| Length 0" | Mount Pieces Two Piece |
| Action Length Short Action | Ring Diameter 34 mm |
| Ring Height Medium | Screw Quantity 8 |
| Bases Screws 0.25 | Ring Screws 0.375 |
| Weight 6.4 oz | MSRP $114.99 |
| Item Number 12577 | UPC 023614981602 |
| Material Alloy | Finish Matte Blued |
| Length 0" | Mount Pieces Two Piece |
| Action Length Short Action | Ring Diameter 34 mm |
| Ring Height High | Screw Quantity 8 |
| Bases Screws 0.25 | Ring Screws 0.375 |
| Weight 6.4 oz | MSRP $114.99 |
