24-BFA-299

1911-22 / 1911-380 Magazine Carrier Instructions

ALWAYS KEEP THE MUZZLE OF YOUR HANDGUN POINTED IN A SAFE DIRECTION. BEFORE ADJUSTING OR USING YOUR HOLSTER, ENSURE THE “SAFETY” IS IN THE ON SAFE POSITION. REMOVE THE MAGAZINE. OPEN THE ACTION AND VISUALLY INSPECT THE CHAMBER TO BE ABSOLUTELY CERTAIN THE FIREARM IS COMPLETELY UNLOADED. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH.

PLEASE READ, UNDERSTAND, AND FOLLOW ALL THE INSTRUCTIONS AND WARNINGS IN THE OWNER’S MANUAL SUPPLIED WITH YOUR FIREARM, THOSE IN ANY INSTRUCTION SHEET INCLUDED WITH YOUR HOLSTER, AND THE INSTRUCTIONS INCLUDED WITH THIS MAGAZINE CARRIER. FAILURE TO FOLLOW INSTRUCTIONS, OR FAILURE TO FOLLOW ANY SAFETY WARNING, MAY RESULT IN INJURY OR DEATH TO YOURSELF OR OTHERS, OR MAY CAUSE DAMAGE TO YOUR FIREARM.

IF YOUR FIREARM’S OWNERS MANUAL IS MISSING, CONTACT THE BROWNING CUSTOMER SERVICE DEPARTMENT AT (800) 333-3288 FOR A FREE COPY OR DOWNLOAD ONE AT BROWNING.COM.

THE USE OF A HANDGUN UNDER ANY CIRCUMSTANCES MAY BE DANGEROUS. SERIOUS INJURY OR EVEN DEATH MAY RESULT WITHOUT THE SAFE HANDLING OF FIREARMS.

BROWNING STRONGLY RECOMMENDS CHECKING THE FIT OF YOUR UNLOADED HANDGUN AND HOLSTER BEFORE USE. Browning also suggests that you practice using your unloaded handgun and holster combination in a safe environment on a regular basis. Periodically check your handgun and holster for proper fit and function in a safe environment. Should the holster become worn, loose, broken, defective, or ill-fitting CEASE USE IMMEDIATELY.

NEVER CHAMBER A CARTRIDGE OR MOVE THE “SAFETY” FROM THE ON SAFE POSITION UNLESS SHOOTING IS IMMINENT. AS A STANDARD SAFETY PROCEDURE, BROWNING RECOMMENDS CARRYING YOUR 1911-22 OR 1911-380 PISTOL WITH THE HAMMER LOWERED AND THE CHAMBER EMPTY. Browning strongly warns against carrying the handgun in the “cocked and locked” position (i.e., hammer cocked with a cartridge in the chamber and the thumb “safety” engaged). Be aware that carrying your handgun in the “cocked and locked” position increases the risk of accidental discharge. Browning accepts no responsibility for any injury, loss, or damage that may result from “cocked and locked” carry.

DO NOT ATTEMPT TO MANUALLY COCK THE HAMMER OF YOUR HANDGUN WHILE IT IS HOLSTERED AS THIS MAY CAUSE AN ACCIDENTAL DISCHARGE. Your holstered handgun should be held in place using your hand during vigorous physical activity. Keep your thumb on the back of the hammer or slide when inserting your handgun in the holster. Always keep your fingers clear of the trigger when drawing or replacing your handgun in the holster. Place your index finger on the outside of the trigger guard to help prevent any inadvertent interference by a foreign object or clothing when re-holstering.

ALWAYS FOLLOW ALL LOCAL, STATE, AND FEDERAL LAWS AND REGULATIONS REGARDING THE OPEN OR CONCEALED CARRYING OF YOUR FIREARM, EITHER ON OR ABOUT YOUR PERSON OR IN YOUR VEHICLE. ALWAYS MAINTAIN A SAFE AND PRUDENT LEVEL OF SECURITY AND CONTROL OVER YOUR FIREARM TO PREVENT ANY UNAUTHORIZED ACCESS OR USE.

THIS MAGAZINE CARRIER IS DESIGNED TO FIT BROWNING MODEL 1911-22 AND MODEL 1911-380 MAGAZINES ONLY. DO NOT ATTEMPT TO USE THIS MAGAZINE CARRIER WITH ANY OTHER TYPE OR MODEL OF MAGAZINE. NEVER ATTEMPT TO MODIFY THE MAGAZINE CARRIER IN ANY WAY OTHER THAN EXPLAINED IN THIS INSTRUCTION SHEET. Do not use this magazine carrier with magazines that have been modified, or no longer the original factory specifications. Aftermarket modifications may cause improper holster fit and result in an accidental handgun discharge.

BROWNING STRONGLY RECOMMENDS THE APPLICATION OF A SUITABLE THREADLOCKER TO ALL MAGAZINE CARRIER HARDWARE. ADDITIONALLY, PERIODICALLY INSPECT THE HARDWARE TO ENSURE IT IS SECURELY TIGHTENED.

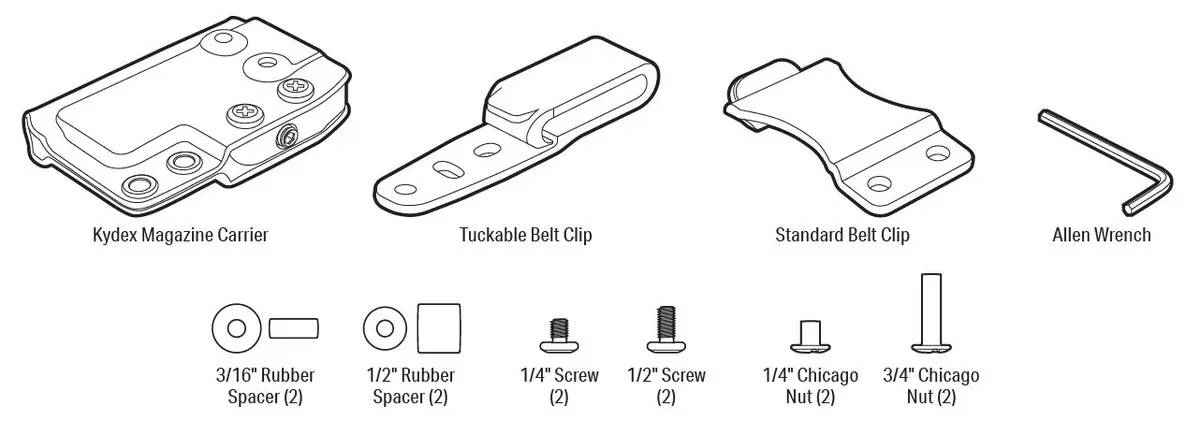

Parts Included

1911-22 and 1911-380 Magazine Carrier Parts

Magazine Carrier Orientation

When carrying a magazine, most users prefer the tip of the ammunition in the magazine to be oriented to face forward, or towards the center of the body. Right-handed users typically prefer to carry their ammunition pointed forward (9 o’clock position on the waist) or to the right (10 or 11 o’clock). Left-handed users typically prefer their ammunition pointed forward (3 o’clock position) or to the left (1 or 2 o’clock).

Tuckable Belt Clip Installation

Remove any belt clip (if installed) from the magazine carrier by using a Phillips screwdriver to turn the screws counterclockwise while putting finger pressure on the Chicago nuts.
To install the tuckable belt clip for right-hand, inside the waistband carry, refer to Figure 1 for clip location, necessary hardware, and order of assembly.
To assemble, turn the screws clockwise with a Phillips screwdriver while applying finger pressure to the Chicago nuts. Prior to tightening the hardware, you may also adjust the cant to your preferred angle (Figure 2). When all adjustments are made, ensure the mounting hardware is secure.
Refer to the Retention Adjustment section for details on retention adjustment.

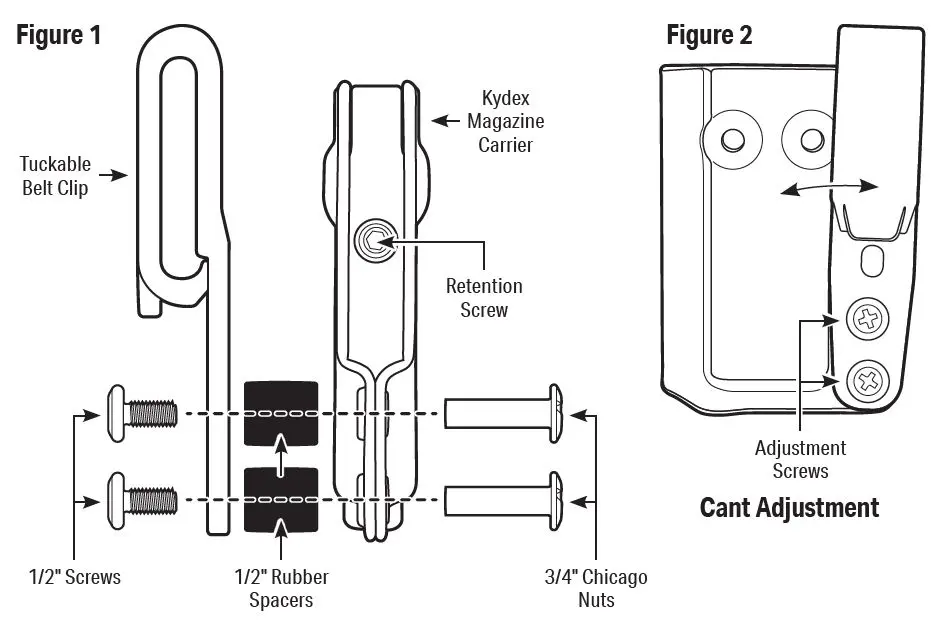

1911-22 and 1911-380 Figure 1 and Figure 2

Ride Height Adjustment

Using a Phillips screwdriver, remove the two screws and two rubber spacers that attach the belt clip to the magazine carrier.
Determine whether a low or high ride height is optimal for your needs. To raise the ride height, lower the clips as shown in Figure 3. To lower the ride height, raise the clips as shown in Figure 4.
Refasten the screws then consult the Retention Adjustment section for detailed instructions.

Standard Belt Clip Installation

For right-hand carry, the standard belt clip should be positioned on the right side of the magazine carrier from the rear-facing perspective as shown in Figure 4. For left-hand carry, the clip should be positioned on the left side of the magazine carrier.

Remove any belt clip (if installed) from the magazine carrier by using a Phillips screwdriver to turn the screws counterclockwise while applying finger pressure to the Chicago nuts.
To install the standard belt clip for right-hand, outside the waistband carry, refer to Figure 4 for clip location, necessary hardware, and order of assembly.
To assemble, turn the screws clockwise with a Phillips screwdriver while applying finger pressure to the Chicago nuts.
Refer to Retention Adjustment section for details on retention adjustment.

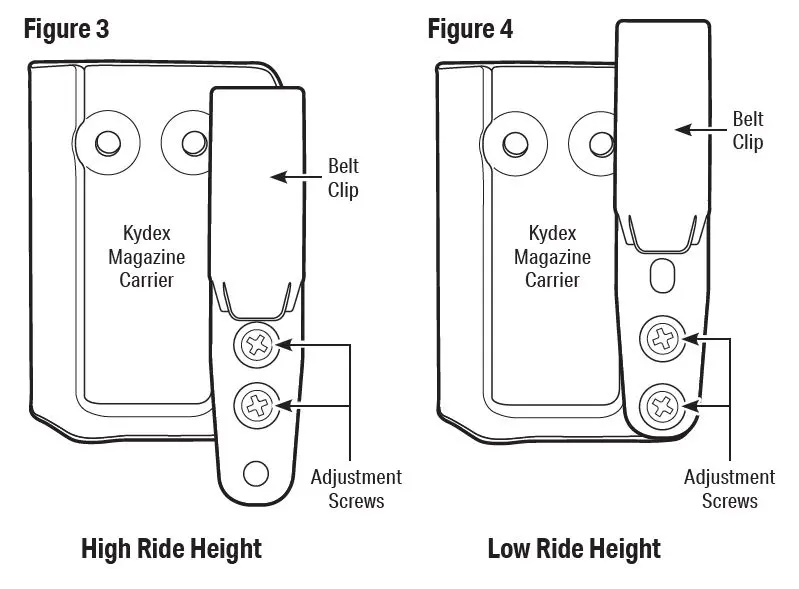

1911-22 and 1911-380 Figure 3 and Figure 4

Retention Adjustment

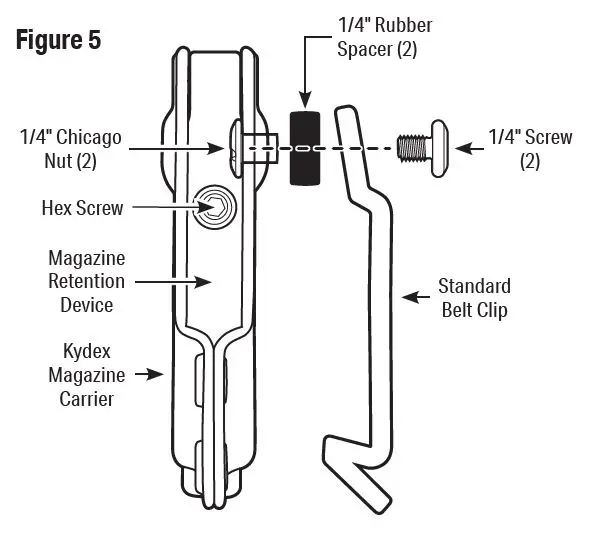

Refer to Figure 5 to locate the hex screw in the magazine retention device.
Use the included 1/8 inch Allen wrench to turn the hex screw clockwise to increase the level of retention, and counterclockwise to decrease the retention. Adjust the retention screw to your desired retention level.

Left-Hand Carry with the Tuckable Belt Clip

Remove any belt clip (if installed) from the magazine carrier by using a Phillips screwdriver to turn the screws counterclockwise while putting finger pressure on the Chicago nuts.
To install the tuckable belt clip for left-hand, inside the waistband carry, install the belt clip on the right side of the magazine carrier (from the rear-facing perspective). Refer to Figure 1 for necessary hardware and order of assembly.
To assemble, turn the screws clockwise with a Phillips screwdriver while applying finger pressure to the Chicago nuts. Prior to tightening the hardware, you may also adjust the cant to your preferred angle (Figure 2). When all adjustments are made, ensure the mounting hardware is secure.
Refer to the Retention Adjustment section for details on retention adjustment.

Left-Hand Carry with the Standard Belt Clip

Remove any belt clip (if installed) from the magazine carrier by using a Phillips screwdriver to turn the screws counterclockwise while applying finger pressure to the Chicago nuts.
To install the standard belt clip for right-hand, outside the waistband carry, install the belt clip on the left side of the magazine carrier (from the rear-facing perspective). Refer to Figure 4 for necessary hardware and order of assembly.
To assemble, turn the screws clockwise with a Phillips screwdriver while applying finger pressure to the Chicago nuts.
Refer to Retention Adjustment section for details on retention adjustment.

BROWNING.COM

US: Morgan, Utah 84050-9326

CANADA: Browning Canada Sports Ltd/Ltée, St-Laurent, Quebec H4S 1W6

INTL: Parc Industriel des Hauts-Sarts, B-4040 Herstal, Belgium

Made in USA

AO2503 / 24299
